Lowe's runs two separate pallet standards, and vendors who confuse them get rejected at the wrong dock. Shipments into Lowe's Regional Distribution Centers (RDCs) use the standard GMA 48 × 40 pallet. Floor displays inside the store use a different pallet — a custom-sized display pallet from 42 to 48 inches that is part of the fixture itself. A display built on a standard 48 × 40 pallet can fail Lowe's in-store display approval, and an in-store display pallet is not automatically accepted at an RDC.
This guide covers both Lowe's pallet standards, the approved display types, slip sheet and stretch wrap requirements, labeling and EDI compliance, routing and chargeback rules, and how Lowe's compares with its closest competitor, Home Depot.
Why Lowe's Is Different: Two Pallet Standards
Most retailers give vendors one pallet spec. Lowe's gives two, and they serve different purposes:
- The RDC pallet (48 × 40 GMA, 2- or 4-way entry) is for shipments into Lowe's Regional Distribution Centers — the standard unitized pallet that moves product to stores.
- The in-store display pallet (42–48 inches, 4-way entry) is a custom pallet built to carry a specific floor display. It is part of the fixture, sized to the display, and approved by Lowe's merchandising for each program.
The second standard is what makes Lowe's distinctive. A floor display at Lowe's is a display pallet: the pallet dimensions are specified as part of the display approval, not assumed to be 48 × 40. This matters because a display designed for a 48 × 40 footprint may be too large for a Lowe's display position, and a display pallet outside the 42–48 inch range must be individually approved.
If you are new to the format, our pallet display sizes guide explains the standard GMA footprints that Lowe's builds its two standards on.
Lowe's In-Store Display Pallet Specifications
For in-store floor displays — the pallets that carry stackouts, sidestacks, and vertical merchandisers on the sales floor — Lowe's publishes a dedicated construction spec:
| Specification | Lowe's in-store display pallet |
|---|---|
| Dimensions | 42.00 in (min) to 48.00 in (max), both length and width |
| Style | Double faced, non-reversible |
| Entry | 4-way entry |
| Lumber | Grade III and/or IV hardwood, clean sawn |
| Fasteners | 2.00 in screw shank nails |
| Top deck boards | 7 boards; outer 0.625 × 5.75 in, inner 0.625 × 3.75 in; max 3 in spacing |
| Bottom deck boards | 5 boards; outer 0.625 × 3.75 in, inner 0.625 × 5.75 in |
| Runners | 3 runners, 1.50 × 3.50 in |
Two rules stand out for display vendors. First, the display must be retail ready with the least amount of extraneous material — Lowe's does not want shrink wrap, strapping, or loose packing that store staff have to remove. Second, if the load exceeds the pallet's spec capability, the vendor must add runners or deck boards to support it safely, and any alternative pallet style or dimension requires approval from Lowe's Promotional Display Specialist or merchandising organization. The display fixture structural design guide covers the load-capacity math that determines when a display pallet needs reinforcement.
Lowe's Standard RDC Pallet Specifications
For shipments into Lowe's Regional Distribution Centers, the standard is the familiar GMA pallet, with Lowe's own construction detail:
| Specification | Lowe's RDC pallet |
|---|---|
| Dimensions | 48.00 in length × 40.00 in width (GMA standard) |
| Style | Double faced, non-reversible |
| Entry | 2-way or 4-way |
| Lumber | Grade III/IV hardwood, clean sawn |
| Fasteners | 2.00 in screw shank nails |
| Top deck boards | 7 boards; outer 0.625 × 5.75 × 40 in, inner 0.625 × 3.75 × 40 in; max 3 in spacing |
| Bottom deck boards | 5 boards; outer 2 (chamfered) 0.625 × 5.75 × 40 in, inner 3 (0.625 × 3.75 × 40 in) |
| Runners | 3 runners, 1.50 × 3.50 × 48 in |
The RDC pallet accepts 2-way entry, which makes it more forgiving than the 4-way display pallet — but the construction is still strict on board grades, chamfered bottom boards, and screw-shank fasteners. In Lowe's Mexico, the requirement tightens: pallets must be fumigated and ISPM-15 certified with 4-way entry only. For the GMA footprint context across retailers, the pallet display sizes hub shows where Lowe's RDC standard sits next to Costco, Walmart, and Aldi.

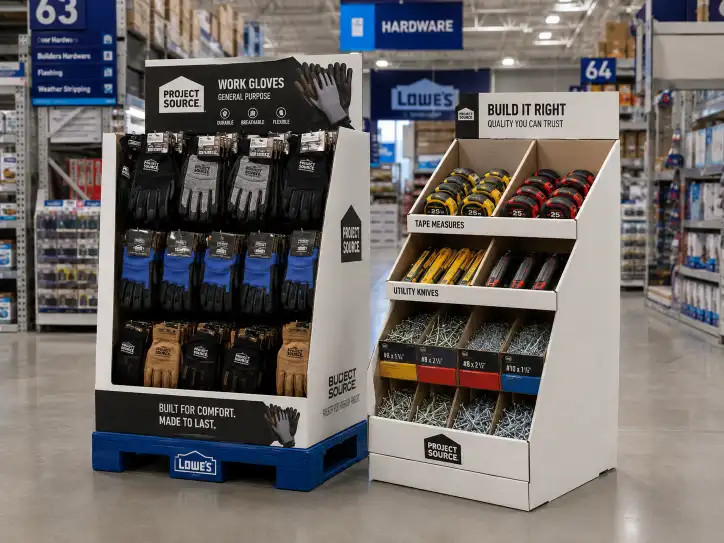

Mini Pallets and Approved Display Types
Lowe's approves a defined set of in-store display types, and each has a structural specification:
| Display type | Pallet / structure | Best for |
|---|---|---|
| Stackout | In-store display pallet | Bulk product, middle-aisle feature |
| Sidestack | Display pallet or side cap | Aisle-side feature, moderate volume |
| Gravity feed bin | In-store display pallet | Boxed and bagged product at front |
| Mini pallet | 20–24 × 20–24 in, double-wing | Small displays under ~100 lb |
| Vertical merchandiser | Display pallet, heavy/light variants | Tall, space-efficient merchandising |
The mini pallet has its own spec: 20–24 × 20–24 inches, double-wing, double-faced non-reversible, 2-way entry, Grade III hardwood, with no more than 1 inch of overhang or underhang on any side. A heavyweight version with extra bottom deck boards is used for pallets over 100 lb. For vendors building the corrugated display structure on top of these pallets, our retail-ready pallet display guide and pre-filled pallet display guide cover the display unit itself.
Slip Sheet and Stretch Wrap Requirements
Lowe's RDC shipments use slip sheets instead of full pallets for some loads, and the stretch wrap rules are explicit:
- Slip sheet material: high-density polyethylene (HDPE), 100% recycled, minimum tensile strength 2,100 psi, tear test 14 lb.
- Slip sheet size: 43 × 51 inches with two adjacent 3-inch tabs (40 × 48-inch footprint).
- Gauge by load weight: under 1,800 lb = 20 mil; 1,800–2,400 lb = 25 mil; over 2,400 lb = 30 mil.
- Friction: non-skid laminate on the load side (COF ≥ 0.49), matte finish on the bottom.
- Stretch wrap: product must not overhang the pallet; wrap must be secured around the bottom edges of the pallet and sufficiently tight to prevent load shift. Outdoor lawn and garden items require UV-resistant stretch wrap.
The slip sheet spec matters to vendors who are told to switch from pallets to slip sheets for certain RDC loads — the gauge is load-dependent, and using the wrong mil thickness is a receiving failure.
Labeling and EDI Compliance
Lowe's labeling and EDI requirements follow the same GS1 framework as other large retailers, with a few Lowe's-specific rules:
| Requirement | Lowe's standard |
|---|---|
| Carton label | GS1-128, 4 × 6 in, thermal transfer (direct thermal not accepted), ANSI Grade C+ print quality |
| Label data | SSCC-18, vendor number, PO number, item/SKU, quantity, ship-to DC |

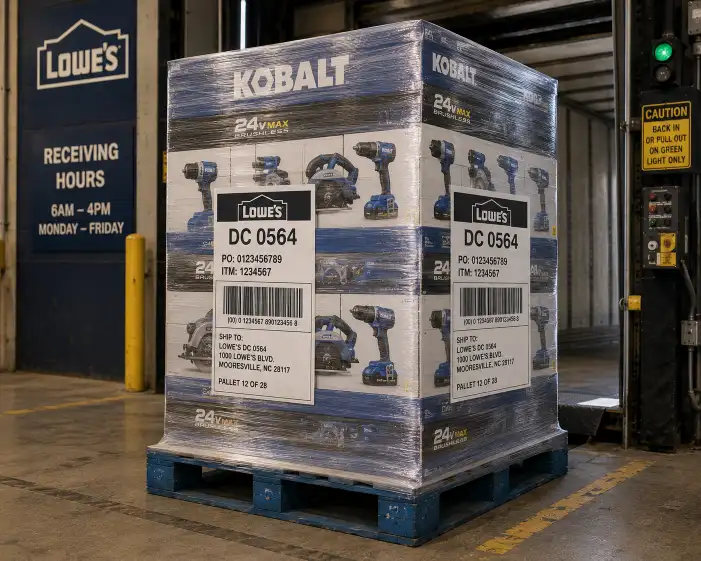

| Pallet label | GS1-compliant with unique SSCC barcode on two adjacent sides |
| Carton orientation | Barcode facing outward so receiving scans without breaking down pallets |
| EDI documents | 850 (PO), 997 (acknowledgment), 856 (ASN), 810 (invoice) |
| ASN timing | Transmitted within 24 hours of carrier pickup, with carton-level detail matching physical labels exactly |
The pattern is the same as every major retailer: the SSCC-18 on the label must match the ASN exactly, and the label must be scannable without touching the load. Vendors who already ship to Walmart or Costco will recognize the GS1-128 format; the Lowe's-specific parts are the label size, the thermal-transfer print method, and the two-adjacent-side pallet labels.
Compliance, Routing, and Regional Rules
Lowe's enforces compliance through the vendor routing guide and automatic chargebacks. The rules that most often catch vendors:
- MABD (Must Arrive By Date) — late arrivals trigger deductions, so the display must be built to the routing guide's schedule, not the vendor's.
- Market Delivery Model (MDM) — bulky categories (large appliances, lumber, some outdoor product) ship to Market Delivery Centers, not RDCs. Check the routing guide before assuming an RDC pallet is correct.
- Cross-dock rules — for vendor-prepared cross-dock, the ASN form must be emailed 24+ hours before arrival, SKUs from different POs must not be mixed on one pallet, and each store PO is palletized separately.
- Regional requirements — in Canada, CHEP pallets are required at DCs and stores, and non-CHEP pallets are fined; in Mexico, banding must be plastic (metal prohibited), items must stack 16 feet high, and handling icons (forklift, clamp, stack height) must be at least 5 inches high in permanent ink.
The practical takeaway: Lowe's compliance is not one rulebook — it is one rulebook per distribution channel and country. The vendor portal (vendorservices.lowes.com) holds the current routing guide for your category, and that is the document to brief your factory against before production.
Lowe's vs Home Depot: How the Specs Compare
Lowe's and Home Depot are often treated as interchangeable by home improvement vendors, but their pallet standards differ in ways that matter at the dock.
| Requirement | Lowe's | Home Depot |
|---|---|---|
| RDC pallet footprint | 48 × 40 in GMA | 40 × 48 in GMA |
| Entry | 2-way or 4-way | 4-way (block or stringer) |
| In-store display pallet | 42–48 in, custom per display | Standard GMA, ±0.25 in overhang |
| Pallet grade | Grade III/IV hardwood, clean sawn | Heat-treated, ISPM-15 compliant |
| Slip sheets | HDPE, load-weighted gauge | Not the primary RDC method |
| Display approval | Merchandiser + SOS group approval | Buyer + compliance |
Two differences stand out. First, the footprint orientation — Lowe's RDC pallet is 48 long by 40 wide, Home Depot's is 40 by 48 — which changes how a display is loaded and positioned. Second, the in-store display pallet flexibility — Lowe's explicitly allows a 42–48 inch custom pallet for floor displays, while Home Depot expects the standard GMA footprint. For the full Home Depot spec, see the Home Depot pallet display requirements guide.
Lowe's Display Compliance Checklist
| Check item | Status | Notes |
|---|---|---|
| Confirm channel first (RDC vs MDC vs cross-dock) | ☐ | Routing guide per category |
| RDC pallet 48 × 40, 2- or 4-way | ☐ | Grade III/IV hardwood, screw-shank nails |
| Display pallet 42–48 in, 4-way | ☐ | For in-store floor displays |
| Mini pallet 20–24 in for small displays | ☐ | 2-way entry, ≤1 in overhang |
| Slip sheet gauge matched to load weight | ☐ | 20 / 25 / 30 mil by weight |
| No product overhang | ☐ | Stretch wrap secured around pallet base |
| GS1-128 carton labels, thermal transfer | ☐ | 4 × 6 in, ANSI Grade C+ |
| Pallet labels on two adjacent sides | ☐ | SSCC matches ASN |
| ASN sent within 24 hours of pickup | ☐ | Carton-level detail |
| MABD confirmed with routing guide | ☐ | Late arrival = deduction |
| Regional rules (CHEP / ISPM-15 / plastic banding) | ☐ | Canada, Mexico, export |
Conclusion
Lowe's pallet display requirements are built on two standards, and the distinction is the thing most vendors miss: a 48 × 40 GMA pallet for RDC shipments, and a 42–48 inch display pallet for in-store floor displays that is part of the fixture itself. Add slip sheet gauges, GS1-128 labeling on two adjacent sides, EDI timing, and per-channel routing rules, and Lowe's becomes a compliance-heavy retailer that rewards vendors who read the routing guide for their specific category.
Because Lowe's publishes detailed construction specs for both pallet standards, the authoritative sources are Lowe's own vendor documentation: the Lowe's pallet specifications and the Lowe's vendor compliance policy define the current requirements, with GS1 covering the label and EDI standards. When you are ready to spec a Lowe's display, tell us which channel it ships through — RDC, cross-dock, or in-store display — and send your product dimensions and loaded weight. We will size the pallet to Lowe's spec, design the corrugated display structure, and produce a sample you can verify before the bulk run.
FAQ
What pallet size does Lowe's require?
Lowe's uses two standards: 48 × 40-inch GMA pallets for Regional Distribution Center shipments (2- or 4-way entry), and 42–48-inch custom display pallets (4-way entry) for in-store floor displays.
What is a display pallet at Lowe's?
A display pallet is the in-store floor display base, sized 42–48 inches in both length and width, built double-faced and non-reversible with 4-way entry. It is part of the approved display fixture, not a standard shipping pallet.
What are Lowe's approved in-store display types?
Lowe's approves stackouts, sidestacks, gravity feed bins, mini pallets, side caps, and vertical merchandisers, with heavy and lightweight variants. Mini pallets are 20–24 × 20–24 inches for displays under about 100 lb.
What labeling does Lowe's require on cartons and pallets?
Cartons need GS1-128 labels (4 × 6 in, thermal transfer, ANSI Grade C+) with SSCC-18 and ship-to DC data. Pallet labels go on two adjacent sides, and the SSCC must match the ASN exactly.
Does Lowe's require EDI?
Yes. Lowe's requires EDI 850 (PO), 997 (acknowledgment), 856 (ASN within 24 hours of pickup), and 810 (invoice), with carton-level ASN detail matching physical labels.
Can I use the same display for Lowe's and Home Depot?
Not without checking. Lowe's RDC pallet is 48 × 40 with 2- or 4-way entry and allows 42–48 inch display pallets, while Home Depot uses 40 × 48 with 4-way entry and expects the standard GMA footprint. The two specs differ in footprint orientation and display pallet rules.
