You have a meeting with a Walmart buyer next month. The product is ready. The pricing works. But if your pallet display does not meet Walmart's requirements — and most first-time vendors get at least one spec wrong — the buyer will reject the entire program. A $0.50 mistake on the pallet footprint can kill a $50,000 order.
A Walmart pallet display must meet strict specifications: 48" x 40" GMA pallet footprint, maximum 72" height including the pallet, maximum 2,000 lbs weight, and 100% recyclable materials. Non-compliant displays face chargebacks of $500–$2,000 per violation. Walmart updates its display requirements annually, and vendors who miss the updates risk program rejection.
I have manufactured pallet displays for Walmart vendors for over 16 years. In that time, I have seen the same compliance mistakes cost brands thousands of dollars in chargebacks. Walmart's requirements are different from Costco's in several important ways — the pallet type, the height limits, the sustainability rules, and the labeling standards. This guide covers everything you need to know to design, manufacture, and ship a compliant Walmart pallet display that gets approved the first time.
Walmart Pallet Display Dimensions and Specs
Walmart's pallet display specifications are standardized across all stores. Every display must fit within these limits.
Core Dimensions
| Specification | Requirement | Notes |
|---|---|---|
| Pallet footprint | 48" x 40" | GMA standard — no exceptions |
| Maximum height (including pallet) | 72" | Measured from floor to top of display |
| Maximum height (power aisle) | 54" | Lower height for endcap visibility |
| Minimum base clearance | 3.5" | For pallet jack entry |
| Pallet type | GMA block pallet, 4-way entry | Wood or plastic, certified |
| Maximum weight | 2,000 lbs | Gross weight including pallet and product |
| Display overhang | 0" | Product must not extend beyond pallet edge |
Height and Placement Rules
| Store Area | Max Height | Why |
|---|---|---|
| Main racetrack (center aisle) | 72" | Maximum visibility while allowing sightlines |
| Power aisle / endcap | 54" | Lower displays maintain sightlines across the store |
| Side aisle / feature | 60" | Standard height for promotional areas |
| Checkout / front end | 48" | Must not block register visibility |
If your display exceeds these height limits, Walmart store teams will reject it at the receiving dock or refuse to place it on the sales floor. The vendor pays for the return shipping and disposal — typically $500–$1,000 per incident.

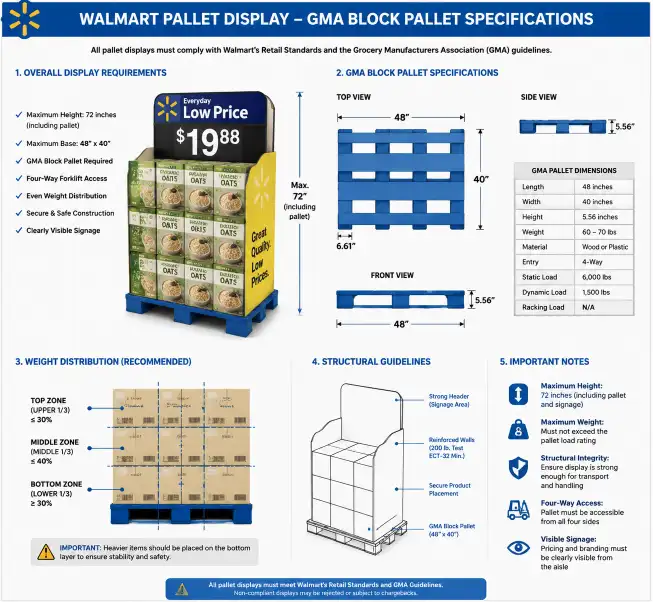

Pallet Types: GMA Block Pallet Requirements
Walmart requires all pallet displays to use GMA-style block pallets with four-way entry. This is different from the stringer pallets used in some other retail channels.
GMA Block Pallet Specifications
| Feature | Requirement |
|---|---|
| Pallet style | GMA block (not stringer) |
| Entry type | Four-way entry |
| Footprint | 48" x 40" |
| Deck boards | Top: 5–7 boards, Bottom: 3–5 boards |
| Block material | Solid wood or certified plastic |
| Weight capacity | 2,800 lbs minimum dynamic load |
| ISPM 15 | Required for international shipments (heat treated) |
Why Walmart Requires Block Pallets
Block pallets provide better stability for retail displays because:
- Four-way entry allows forklifts and pallet jacks to access from any side — critical for tight store aisles
- Higher load capacity — block pallets support heavier displays without sagging
- Better racking stability — block pallets sit flat on warehouse racks
- Less product damage — the solid deck distributes weight evenly
Stringer pallets (the standard two-way entry type) are not accepted for Walmart pallet displays. If your factory quotes a display on a stringer pallet, the display will fail compliance.
Plastic vs Wood Pallets for Walmart
| Factor | Wood GMA Pallet | Plastic GMA Pallet |
|---|---|---|
| Cost | $8–$15 per pallet | $15–$30 per pallet |
| Weight | 35–50 lbs | 25–40 lbs |
| Durability | Good — single to limited use | Excellent — reusable |
| ISPM 15 | Heat treatment required for export | Not required |
| Walmart preference | Accepted | Accepted, preferred for sustainability |
| Recyclability | 100% recyclable | Recyclable but less common |
For most Walmart programs, wood GMA block pallets are the standard choice. Plastic pallets are preferred for sustainability scoring but cost more upfront.
Weight Limits and Structural Requirements
Walmart tests pallet displays for stability and structural integrity. Displays that fail these tests are rejected.
Weight Distribution Rules
| Requirement | Specification |
|---|---|
| Maximum gross weight | 2,000 lbs per pallet display |
| Maximum net weight (product only) | 1,800 lbs |
| Center of gravity | Must be within the middle 60% of the pallet |
| Eccentric load | Maximum 10% weight imbalance from center |
| Stacking (if applicable) | Must support 2x display weight for 24 hours |
Structural Testing Requirements
| Test | Standard | What It Measures |
|---|---|---|
| Tip-over stability | 15-degree tilt (ASTM F1562) | Display must not tip at 15° angle |
| Compression test | ASTM D642 | Shelf strength under vertical load |
| Vibration test | ASTM D4169, Truck Level 1 | Simulates transport vibration |
| Edge crush test | ECT 32 lb minimum | Corrugated board strength |
| Drop test | 6-inch drop on corner | Pallet durability during handling |
Corrugated Board Requirements
| Board Type | Minimum ECT | Best Use |
|---|---|---|
| Single-wall (200 lb) | 32 ECT | Light products under 10 lbs per shelf |
| Double-wall (275 lb) | 44 ECT | Medium products 10–30 lbs per shelf |
| Triple-wall | 70+ ECT | Heavy products 30+ lbs per shelf |
| Kraft liner (top/bottom) | 42 lb minimum | Structural strength and print quality |
For a more detailed breakdown of corrugated material options, see my cardboard display guide which covers flute grades, board types, and structural design for retail displays.
Walmart Sustainability Requirements for Displays
Walmart has the most aggressive sustainability requirements of any US retailer. Every pallet display must meet these standards.
2025–2026 Sustainability Mandates
| Requirement | Standard | Deadline |
|---|---|---|
| Recycled content | Minimum 30% post-consumer recycled fiber | Effective 2025 |
| Recyclability | 100% recyclable (excluding pallet) | Effective 2025 |
| Plastic reduction | No shrink wrap — use stretch hood only | Effective 2025 |
| Mixed SKU ban | No mixed-SKU pallets without pre-approval | Effective 2025 |
| FSC certification | Preferred for paper-based materials | Encouraged |
| Sustainability scoring | Displays scored on Project Gigaton metrics | Active |
What This Means for Your Display Design
- Replace shrink wrap with stretch hood — Stretch hood uses less plastic and is recyclable. Shrink wrap is being phased out.
- Use recycled corrugated — Minimum 30% post-consumer content. Verify with your factory that the board meets this standard.
- Design for mono-material — Avoid mixing paper, plastic, and metal in the same display. Paper-based displays score highest.
- Include QR codes — Walmart now encourages QR codes on displays that link to product sustainability information. This improves your sustainability score.
- Remove plastic banding — Displays must be stable without plastic strapping or banding. If your display needs banding, the structural design needs work.
Sustainability Scoring
Walmart scores each display on sustainability criteria. Higher scores improve your standing with the buyer and may qualify you for preferred vendor programs.
| Scoring Factor | Weight | How to Improve |
|---|---|---|
| Recycled content percentage | 30% | Specify 30%+ post-consumer fiber |
| Recyclability | 25% | Eliminate non-paper components |
| Plastic reduction | 20% | Stretch hood instead of shrink wrap |
| Structural efficiency | 15% | Reduce material weight without losing strength |
| Transportation efficiency | 10% | Maximize units per truckload |
Labeling, Barcode, and Retail Link Requirements
Walmart's labeling requirements are specific and non-negotiable. Missing or incorrect labels result in automatic chargebacks.
Required Labels on Every Pallet Display
| Label Type | Location | Information Required |
|---|---|---|
| Display ID label | Front and back (2 sides minimum) | Walmart display ID, PO number, SKU |
| GS1-128 barcode | Front panel | SSCC-18 pallet ID, quantity, weight |
| Price label | Front panel (visible) | Retail price, member price if applicable |
| Product information | Front or side panel | Product name, brand, SKU |
| Pallet label | Pallet stringer | Pallet ID, weight, ISPM 15 stamp |
| Recyclability label | Bottom panel | Material composition, recycling instructions |
Retail Link Requirements
All Walmart pallet displays must be registered in Retail Link, Walmart's supplier portal, before shipment.
| Step | Action | Timeline |
|---|---|---|
| 1 | Register display specifications in Retail Link | 4–6 weeks before ship date |
| 2 | Submit display design and dimensions | After buyer approval |
| 3 | Upload compliance documentation | 2 weeks before ship date |
| 4 | Confirm PO and shipping details | 1 week before ship date |
| 5 | Submit ASN (Advanced Ship Notice) | 24–48 hours before shipment |
Common Labeling Mistakes
- Barcode does not scan — Print quality must meet GS1 standards. Test scan before shipping.
- Display ID missing or incorrect — Must match the PO exactly. Even a single digit error triggers rejection.
- Label placed on removable part — Labels must be on the permanent structure, not on a removable tray or lid.
- Recyclability label missing — Required on all displays. Include material type and recycling instructions.
For more on labeling and logistics requirements, see my guide on display fulfillment and palletizing.
Walmart Pallet Display Types: Full, Half, Quarter, and PDQ
Walmart uses several pallet display formats depending on the product category, promotion type, and store location.
| Display Type | Footprint | Height | Best For | Typical Stores |
|---|---|---|---|---|
| Full pallet display | 48" x 40" | Up to 72" | High-volume products, center aisle | Supercenters, Neighborhood Markets |
| Half pallet display | 48" x 20" or 24" x 40" | Up to 60" | Mid-volume, endcaps, side aisles | Supercenters |
| Quarter pallet display | 24" x 20" or 24" x 30" | Up to 48" | Small promotions, checkout | All stores |
| PDQ pallet display | 48" x 40" (on pallet) | Up to 60" | Impulse buys, multiple SKUs | Supercenters |
| Sidekick / power wing | Hang on shelf or endcap | Varies | Add-on purchases, small items | All stores |
Full Pallet Displays
Full pallet displays are the standard for Walmart's main racetrack. They sit on the floor in high-traffic areas and carry the largest product volume. A full pallet display typically holds 100–300 units depending on product size.
Full pallet displays work best for:
- High-volume consumables (snacks, beverages, household)
- Seasonal promotions (back-to-school, holiday, summer)
- Large product sizes (multipacks, bulk items)
- New product launches needing maximum visibility
Half Pallet Displays
Half pallet displays are used for endcaps, side aisles, and smaller promotions. They take up half the floor space of a full pallet and are easier for store teams to position.
Half pallet displays work best for:
- Mid-volume products
- Endcap promotions
- Categories with limited shelf space
- Stores with narrower aisles
PDQ Pallet Displays
PDQ (Pretty Darn Quick) displays on pallets are Walmart's preferred format for checkout and front-end promotions. They are typically smaller, pre-assembled, and ready to place on the floor with minimal store labor.
For a detailed comparison of PDQ formats, see my PDQ display guide.
Common Walmart Display Compliance Mistakes
Based on 16 years of manufacturing Walmart displays, these are the most common compliance failures I see.
Top 10 Compliance Mistakes
| # | Mistake | Consequence | How to Avoid |
|---|---|---|---|
| 1 | Wrong pallet type (stringer instead of block) | Display rejected at DC | Confirm GMA block pallet with factory |
| 2 | Height exceeds 72" | In-store rejection, return freight | Measure from floor to top of tallest element |
| 3 | Display overhangs pallet edge | Rejected, chargeback applied | Design to 48" x 40" max — no overhang |
| 4 | Labels missing or incorrect | Chargeback $500–$2,000 | Use Retail Link checklist before shipping |
| 5 | Shrink wrap instead of stretch hood | Sustainability violation | Switch to stretch hood machine |
| 6 | Plastic banding on display | Sustainability violation | Redesign for banding-free stability |
| 7 | Insufficient corrugated strength | Display collapses in store | Test with actual product weight |
| 8 | Mixed SKUs without approval | Rejected, chargeback | Get pre-approval for mixed displays |
| 9 | Barcode does not scan | Chargeback | Print and test scan before shipment |
| 10 | Assembly instructions missing | Store team refuses to set up | Include clear, visual instructions |
How to Avoid Chargebacks
Every Walmart display violation results in a chargeback deducted from your payment. The average chargeback for a non-compliant pallet display is $500–$2,000 per violation.
| Prevention Step | Cost | Chargeback Risk Reduced |
|---|---|---|
| Pre-shipment compliance audit | $200–$500 | 80% |
| Third-party lab testing | $500–$1,500 | 90% |
| Factory QC inspection | $300–$600 | 70% |
| Photo documentation at loading | $100–$200 | 50% |
For a complete overview of chargeback prevention, see my guide on Costco display chargebacks — the principles apply to Walmart as well, though the specific requirements differ.
How Much Does a Walmart Pallet Display Cost?
Walmart pallet display costs depend on the display type, material grade, print complexity, and whether pre-filling is required.
| Display Type | 500 Units | 1,000 Units | 2,500 Units | 5,000 Units |
|---|---|---|---|---|
| Full pallet display (standard) | $18–$28 | $14–$22 | $11–$18 | $9–$14 |
| Full pallet display (premium print) | $22–$35 | $18–$28 | $14–$22 | $11–$18 |
| Half pallet display | $12–$20 | $9–$16 | $7–$12 | $6–$10 |
| Quarter pallet display | $8–$14 | $6–$11 | $5–$9 | $4–$7 |
| PDQ pallet display | $10–$18 | $8–$14 | $6–$11 | $5–$9 |
Additional Costs
| Cost Item | Typical Range |
|---|---|
| GMA block pallet | $8–$15 per pallet |
| Pre-filling (product loading) | $0.50–$2.00 per display |
| Full-color flexo printing | +$0.50–$2.00 per display |
| Litho laminate label (for high-quality print) | +$1.00–$3.00 per display |
| Stretch hood (sustainability compliant) | $0.30–$0.80 per pallet |
| Compliance testing (third-party) | $500–$1,500 per design |
| Compliance label printing | $0.10–$0.30 per label |
Cost-Saving Tips for Walmart Displays
- Use flexo printing with litho labels — Print the main structure with flexo (economical) and add a high-quality litho label for the branding surface
- Standardize pallet dimensions — If you have multiple SKUs, design them all to fit the same 48" x 40" footprint
- Pre-fill at the factory — Factory pre-filling is cheaper than co-packing at a third-party warehouse
- Design for flat packing — Flat-packed displays ship 3–4x more units per truckload than pre-assembled
For comparison with other display types, see my retail display guide which covers the full range of in-store display options.
FAQ
What are the standard dimensions for a Walmart pallet display?
The standard dimensions are 48" x 40" footprint (GMA pallet) with a maximum height of 72" including the pallet. Maximum weight is 2,000 lbs. Power aisle displays are limited to 54" height.
What type of pallet does Walmart require?
Walmart requires GMA-style block pallets with four-way entry. Stringer pallets are not accepted. The pallet must support forklift and pallet jack access from all four sides.
What is the maximum height for a Walmart pallet display?
72" including the pallet. For power aisle and endcap placements, the maximum is 54". Side aisles allow up to 60".
Does Walmart require sustainable materials for displays?
Yes. Walmart requires minimum 30% post-consumer recycled content, 100% recyclability, and no shrink wrap (use stretch hood instead). Plastic banding is also prohibited.
How do I register a pallet display with Walmart?
All displays must be registered in Walmart's Retail Link portal. Submit display specifications, design, dimensions, and compliance documentation 4–6 weeks before the planned ship date.
What happens if my pallet display does not meet Walmart's requirements?
Non-compliant displays are rejected at the distribution center or store. The vendor pays for return shipping and disposal, plus potential chargebacks of $500–$2,000 per violation.
Can I use a half pallet display at Walmart?
Yes. Half pallet displays (48" x 20" or 24" x 40") are commonly used for endcaps, side aisles, and smaller promotions. Maximum height is 60" for half pallet formats.
What testing does Walmart require for pallet displays?
Walmart requires displays to pass a 15-degree tip-over stability test (ASTM F1562), compression testing (ASTM D642), and distribution vibration testing (ASTM D4169). Corrugated board must meet minimum ECT standards.
What labels are required on a Walmart pallet display?
Display ID label (front and back), GS1-128 barcode, price label, product information, pallet label with ISPM 15 stamp, and recyclability label. All labels must be on the permanent display structure.
Where can I get a Walmart-compliant pallet display manufactured?
You can order compliant pallet displays from a display manufacturer with Walmart compliance experience. Request a compliance checklist and sample testing before production.
