H-E-B operates roughly 430 stores across Texas and northern Mexico, making it the largest private employer in Texas and the dominant grocery retailer in the state. Its store model is regional grocery — full-service supermarkets with strong private label programs and a supply chain built around its San Antonio headquarters and regional distribution centers. For display vendors, H-E-B is different from the national chains: it runs a standard GMA pallet program with display-ready expectations similar to the national grocers, enforces a 54–60 inch height limit that sits between Aldi's 60 inches and Publix's 48 inches, and assesses some of the strictest EDI chargebacks in grocery — $500 for a missing ASN and $250 per carton for a missing label.
This guide covers the H-E-B pallet display requirements every vendor should know: GMA 48 × 40 pallet specs with CHEP/white wood acceptance, the 54–60 inch display height limit, 2,000–2,500 lb weight limits, retail-ready packaging expectations, GS1-128 labeling with SSCC-18, EDI 856 ASN compliance through SPS Commerce, and chargeback prevention.
Why H-E-B Is Different for Display Vendors
H-E-B is a Texas institution with a supply chain and store model that reflect its regional scale. For display vendors, three facts define how H-E-B sourcing works:
- GMA pallets with CHEP accepted. H-E-B accepts standard GMA 48 × 40 inch pallets, including both white wood and CHEP pallets. This is more flexible than Sam's Club (9-block only) and BJ's (no CHEP), but the condition standards are strict — no broken boards, clean pallets only.
- Display height at 54–60 inches. H-E-B's loaded display height limit of 54–60 inches (including the pallet) sits between the tightest grocers (Publix at 48 inches) and the standard club-store heights. It provides enough room for a 3–4 tier pallet display but not the 5+ tiers a Costco program would run.
- EDI chargebacks are high and specific. H-E-B charges $500 for a missing or incorrect ASN and $250 per carton or pallet for a missing or incorrect GS1-128 label. At $250 per carton, a single pallet display with 40 unlabeled cartons can incur a $10,000 chargeback before the product is even checked.
The practical implication: H-E-B's display program is straightforward on the physical side — standard pallets, moderate height, retail-ready packaging — but unforgiving on the labeling and EDI side. The label spec belongs in the factory brief, not the last inspection.

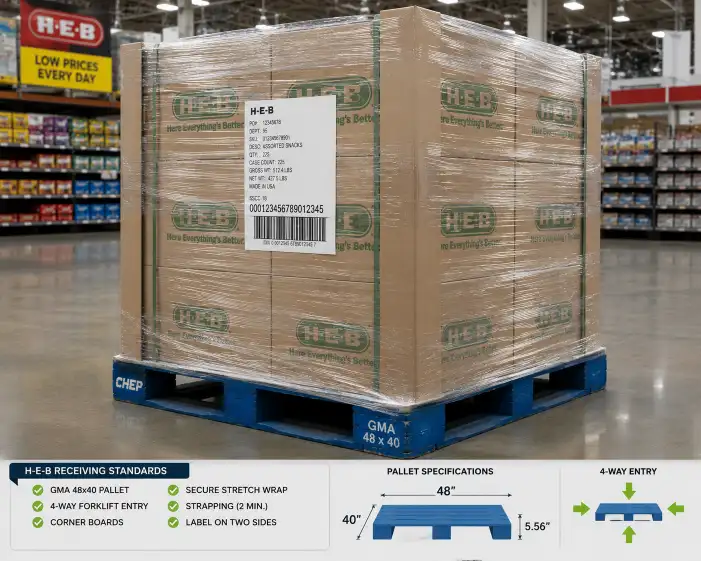

H-E-B Pallet Requirements: Size, Type, and Condition
H-E-B operates on the standard GMA grocery pallet with acceptance of both pool and white wood pallets:
| Requirement | H-E-B standard |
|---|---|
| Pallet size | GMA 48 × 40 in |
| Entry type | 4-way entry preferred |
| Acceptable types | Standard GMA white wood and CHEP pallets |
| Condition | Clean, no broken boards, structurally sound |
| Stretch wrap | 5–7 layers minimum of clear stretch wrap |
| Corner boards | Required for any pallet with product overhang or fragile goods |
| Mixed SKUs | Not allowed on one pallet unless pre-approved |

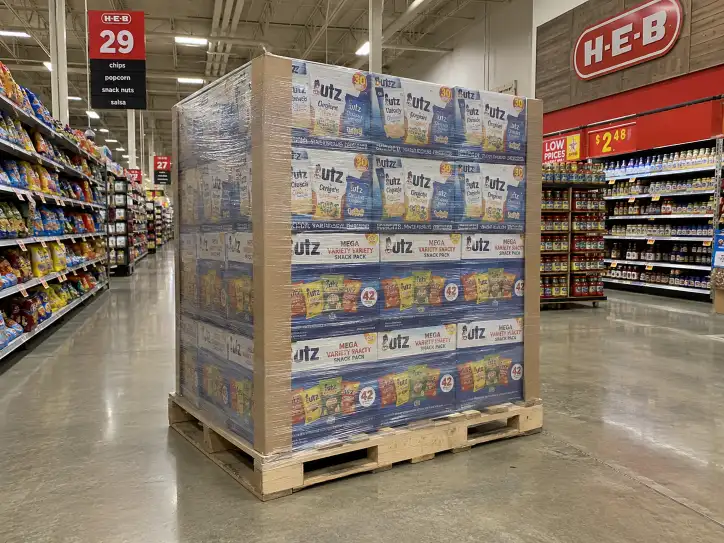

The corner board requirement is H-E-B specific: if the display extends near the pallet edge or the product is fragile, corner boards are required on all four corners. For a display that sits flush on the pallet with no overhang, corner boards may not be mandatory, but they are standard practice for any H-E-B display program given the retailer's emphasis on stable, retail-ready loads.
For the footprint context across grocery retailers, the pallet display sizes guide shows where H-E-B's 48 × 40 standard sits next to Aldi, Publix, and Walmart.
Display Height and Weight Limits
H-E-B enforces height and weight limits that reflect its grocery format:
| Limit | H-E-B standard | Comparison |
|---|---|---|
| Max loaded height (floor display) | 54–60 in (including pallet) | Aldi: 60 in; Publix: 48 in |
| Max weight per pallet | 2,000–2,500 lb | Standard GMA dynamic rating |
| Pallet footprint | GMA 48 × 40 in | Standard grocery |
| Product overhang | Not permitted — product must sit inside the pallet footprint | Enforced at receiving |
The 54–60 inch height range gives H-E-B more vertical room than Publix (48 inches) or the stricter half-pallet limits at Aldi (36–40 inches), but less than the 72-inch club-store standard. A display designed for Costco at 72 inches must be reduced by 1–2 tiers. The 2,000–2,500 lb weight cap is standard for the GMA footprint and accommodates most grocery categories.
For half-pallet and quarter-pallet display options that work within these limits, the retail-ready pallet display guide covers the corrugated design principles that apply in the grocery channel.
Retail-Ready Packaging Standards
H-E-B requires display-ready and retail-ready packaging (RRP) that goes directly to the shelf with no repacking:
| Requirement | H-E-B standard |
|---|---|
| Display readiness | Must go directly to the shelf with no extra handling |
| Easy-open cases | Tear strips or perforations preferred |
| Shelf-ready trays | Must withstand warehouse stacking 3–4 pallets high |
| Display width | Maximum 48 inches for standard grocery aisles |
| Stability | Self-supporting, stable, no tools required for setup |
| Case packs | Designed for direct shelf placement |
The display width rule — maximum 48 inches — is the same as the standard grocery aisle width, which means a display that fits the pallet footprint automatically fits the aisle. The stacking requirement for shelf-ready trays (3–4 pallets high in the warehouse) sets the minimum board grade: the corrugated case or tray must survive warehouse stacking loads even when the pallet display is designed for floor placement. For the corrugated structures that meet this requirement, our PDQ display guide covers tray and shipper specifications, and the display fixture structural design guide explains the ECT ratings and flute selection needed for 3–4 pallet stacking.
Labeling and EDI Compliance
H-E-B's labeling and EDI requirements follow the GS1-128 framework through SPS Commerce, with strict chargebacks for non-compliance:
| Requirement | H-E-B standard |
|---|---|
| Label standard | GS1-128 (UCC-128) with unique SSCC-18 per carton/pallet |
| Label size | 4 × 6 in or 4 × 4 in |
| Label data | SSCC-18 (AI 00), PO number (AI 400), ship-to location, carton count (AI 37), item number and description |
| Barcode quality | Code 128, scannable |
| Label placement | Outside of each carton and pallet, readable from the aisle |
| EDI 856 version | 4010 or 5010 |
| ASN timing | Transmitted before or at time of shipment; within 2 hours of departure |
| Required EDI documents | 850 (PO), 856 (ASN), 810 (invoice), 997 (functional acknowledgment) |
| EDI partner | SPS Commerce |
The 2-hour ASN transmission window is tighter than most retailers' requirements. H-E-B wants the 856 transmitted within 2 hours of the shipment leaving the dock, not the next day or within 24 hours as some retailers allow. For a display program with multiple pallets, this means the ASN data must be generated and transmitted at the point of loading, not after the truck has left. Vendors who already ship to Walmart or Costco will recognize the GS1-128 framework, but H-E-B's timing and chargeback amounts are distinctive.
Chargeback Prevention
H-E-B assesses chargebacks that are among the highest in grocery for labeling and EDI violations:
| Chargeback category | Penalty | Prevention |
|---|---|---|
| Missing or incorrect EDI 856 ASN | $500 per occurrence | Transmit within 2 hours of departure; verify SSCC match |
| Late ASN transmission | $150 per occurrence | Automate ASN generation at the loading dock |
| Missing or incorrect GS1-128 label | $250 per carton/pallet | Verify every label before wrapping |
| Non-compliant EDI version | $100 per transaction | Confirm version 4010 or 5010 with SPS Commerce |
| EDI testing failure | $1,000 one-time fee | Complete testing before the first production shipment |
| Pallet condition failure | Rejection or deduction | Inspect pallets for damage and cleanliness before loading |
| Incorrect or missing UPC | Deduction | Verify UPC data in H-E-B's system before label printing |
The $250 per-carton penalty for a missing or incorrect GS1-128 label is the number that most affects display programs. A pallet display that ships with 40 club-pack cartons each missing the required label format is exposed to a $10,000 chargeback before the product is even inspected. The prevention is straightforward: verify the label artwork against H-E-B's spec in the sample stage, confirm the ASN timing in the logistics plan, and inspect every carton label before the shipment leaves. See the sampling process for what to check at that stage.
H-E-B vs Aldi vs Publix: How Regional Grocers Compare
H-E-B, Aldi, and Publix are three of the largest regional grocery chains in the US, and their pallet display requirements reflect their different store models:
| Requirement | H-E-B | Aldi | Publix |
|---|---|---|---|
| Store count | ~430 (TX + Mexico) | ~2,400 (US) | ~1,400 (Southeast) |
| Pallet footprint | GMA 48 × 40 in | GMA 48 × 40 in | GMA 40 × 48 in |
| Acceptable pallets | White wood + CHEP | Grade A display | GMA standard |
| Max loaded height | 54–60 in | 60 in | 48 in |
| Max weight per pallet | 2,000–2,500 lb | ~2,800 lb | 2,000 lb |
| Display format | Retail-ready cases | Display-ready cases | Shelf-ready trays |
| ASN penalty | $500 per occurrence | Negotiated per program | Standard retailer penalty |
| Label penalty | $250 per carton | Standard | Standard |
| EDI partner | SPS Commerce | Various | Various |
The practical takeaway: H-E-B is more flexible on pallet type than Aldi (accepts white wood and CHEP, not just Grade A display pallets) and more generous on height than Publix (54–60 inches vs 48 inches), but its ASN and label penalties are several times higher than either competitor. The chargeback risk at H-E-B is concentrated in paperwork, not in the physical display.
How to Order Compliant Displays for H-E-B
The cleanest path to an H-E-B display program is to brief the factory against the chain's specific specs, with particular attention to the labeling and EDI requirements:
- Spec standard GMA 48 × 40 pallets — white wood or CHEP accepted. Use corner boards if the product extends near the pallet edge.
- Design to 54–60 inches loaded height — confirm the exact target with the H-E-B buyer for the specific category.
- Keep loaded weight within 2,000–2,500 lb — standard GMA capacity covers most grocery programs.
- Build retail-ready packaging — easy-open cases or shelf-ready trays that withstand 3–4 pallet warehouse stacking.
- Spec GS1-128 labels on every carton and pallet — 4 × 6 in, SSCC-18, PO, ship-to, and carton count. Every carton, not just the pallet.
- Set up EDI 856 transmission within 2 hours of departure — automate through SPS Commerce or an approved VAN. Confirm the version (4010 or 5010) during certification.
- Order a physical sample — load the real product, wrap it to H-E-B spec, apply the labels, and verify the barcode quality and ASN data before the bulk run.
Conclusion
H-E-B pallet display requirements are straightforward on the physical side — standard GMA 48 × 40 pallets with CHEP accepted, a 54–60 inch height limit, and retail-ready packaging — but unforgiving on the labeling and EDI side, where a missing ASN costs $500 and a missing carton label costs $250 per unit. The $250-per-carton penalty is the highest in grocery for a labeling violation, which means the label spec and ASN workflow must be fixed in the factory brief, not adjusted after production. Build the display to the GMA standard, confirm the height with the buyer, label every carton to GS1-128, and transmit the ASN within 2 hours — and the program moves through H-E-B's system without chargebacks.
Because H-E-B's requirements are published in its vendor compliance manual, the authoritative sources are the H-E-B vendor portal for the current standards, the H-E-B EDI requirements guide for the ASN and label rules, and the H-E-B vendor compliance manual for the chargeback schedule, with GS1 defining the label standard. When you are ready to spec an H-E-B display, send us the product dimensions, case count, and target volume — we will size the display to the height limit, spec the carton labels and ASN workflow, and produce a sample you can verify before the bulk run.
FAQ
What pallet does H-E-B require?
H-E-B requires standard GMA 48 × 40 inch pallets. Both white wood and CHEP pallets are accepted. Pallets must be clean and free of broken boards.
What is the height limit for H-E-B pallet displays?
The maximum loaded height for floor displays is 54–60 inches including the pallet. This is more generous than Publix's 48-inch limit and similar to Aldi's 60-inch standard.
What is the weight limit for H-E-B pallet displays?
The maximum weight per pallet is 2,000–2,500 lb, which is standard for the GMA 48 × 40 footprint.
Does H-E-B require retail-ready packaging?
Yes. H-E-B requires display-ready cases that go directly to the shelf with no repacking. Easy-open cases (tear strips or perforations) are preferred, and shelf-ready trays must withstand warehouse stacking 3–4 pallets high.
What labeling does H-E-B require?
H-E-B requires GS1-128 labels (4 × 6 in or 4 × 4 in) with unique SSCC-18 on every carton and pallet. Labels must include the PO number, ship-to location, and carton count, placed on the outside of each unit.
Does H-E-B require EDI?
Yes. H-E-B requires EDI 850 (PO), 856 (ASN), 810 (invoice), and 997 (functional acknowledgment) through SPS Commerce. The ASN must be transmitted within 2 hours of shipment departure.
What chargebacks does H-E-B assess?
H-E-B charges $500 for a missing or incorrect ASN, $250 per carton or pallet for a missing or incorrect GS1-128 label, $150 for a late ASN, and $1,000 for failure to complete EDI testing before production.
Can I use the same display for H-E-B and Aldi?
The display structure can be similar since both use the GMA 48 × 40 footprint and similar height limits, but H-E-B's EDI and label penalties are much higher, and Aldi requires Grade A display pallets. Each retailer's compliance spec must be confirmed separately.
