A pallet display that exceeds 72 inches at Home Depot hits the racking beam and cannot be placed. A display weighing over 2,500 lbs requires engineering sign-off and is rejected without it. A power wing placed in a regular aisle instead of an endcap is removed within 24 hours. Home Depot is the largest home improvement retailer in the world, operating over 2,300 stores across North America, and its display requirements are designed for power tools, building materials, paint, and hardware — not groceries.
A Home Depot pallet display must meet specific requirements: 40" x 48" GMA pallet footprint, maximum 72" height for floor displays (48" for racking), maximum 2,500 lbs weight, corner boards required for displays over 48" tall, and GS1-128 barcode with GTIN-14 labeling. Floor-standing displays must pass a 15-degree tilt test. Home Depot allows both GMA block and stringer pallets, all heat-treated and ISPM-15 compliant. Overhang is limited to 0.25 inches per side — the strictest overhang tolerance of any major retailer.
I have manufactured pallet displays for Home Depot vendors for over 16 years. Home Depot is different from grocery and drugstore retailers in almost every way — the products are heavier, the displays must be more rugged, the pallet standards are more flexible (they accept stringer pallets), and the weight limits are significantly higher. A display designed for a supermarket will not work at Home Depot, and vice versa. This guide covers everything you need to design, manufacture, and ship a compliant Home Depot pallet display that gets approved and survives the home improvement retail environment.
Home Depot Pallet Display Dimensions and Specs
Home Depot's display requirements are designed for a home improvement retail environment. Products are heavier, aisles are wider, and displays must withstand more rugged handling than grocery displays.
Core Dimensions
| Specification | Floor Display | Racking Display | Stacked Pallet |
|---|---|---|---|
| Pallet footprint | 40" x 48" GMA | 40" x 48" GMA | 40" x 48" GMA |
| Maximum height | 72" (including pallet) | 48" (fits in rack) | 48" per tier |
| Maximum weight | 2,500 lbs | 1,500–2,500 lbs | 2,500 lbs per pallet |
| Overhang tolerance | ±0.25" per side (strictest in industry) | ±0.25" per side | Must be even and square |
| Pallet type | GMA block or stringer | GMA block or stringer | GMA block or stringer |
| Corner boards | Required for displays over 48" | Required | Required for stacking |
| Stretch wrap | 3-mil minimum, full coverage | 3-mil minimum | 3-mil minimum |
Height Limits by Store Area
| Store Area | Max Height | Notes |
|---|---|---|
| Floor display (main aisle / power aisle) | 72" | Full height for promotional floor displays |
| Racking / shelf display | 48" | Must fit within standard Home Depot racking |
| Endcap display | 72" (floor) or 48" (rack) | Depends on endcap configuration |
| Sidekick / power wing | Matches gondola height | Bottom min 18" from floor |
| Checkout / front end | 48" | Smaller displays at register area |
Home Depot vs Other Retailers: Key Differences
| Retailer | Height | Max Weight | Overhang | Pallet Type |
|---|---|---|---|---|
| Home Depot | 72" floor, 48" rack | 2,500 lbs | ±0.25" | Block or stringer |
| Lowe's | Similar to HD | 2,500 lbs | Similar | Block or stringer |
| Walmart | 72" | 2,000 lbs | 0" | GMA block only |
| Kroger | 66" | 2,000 lbs | 2" max overhang | GMA block only |
| Publix | 48" | 2,000 lbs | 0" | GMA block only |
| Target | 48" (66" power aisle) | 1,500 lbs | 0" (1" endcap) | GMA block only |
Key difference: Home Depot is the only major retailer that accepts both GMA block pallets and stringer pallets. Home Depot also has the highest weight limit at 2,500 lbs and the strictest overhang tolerance at ±0.25".
Weight Distribution Rules
| Requirement | Specification |
|---|---|
| Maximum gross weight (floor display) | 2,500 lbs per pallet |
| Maximum gross weight (racking) | 2,500 lbs (DC may require lower) |
| Engineering sign-off required | For displays over 2,500 lbs |
| Center of gravity | Within middle 60% of pallet |
| Single side weight | No single side exceeding 60% of total weight |
| Aisle clearance | Minimum 4 feet clear width at all times |

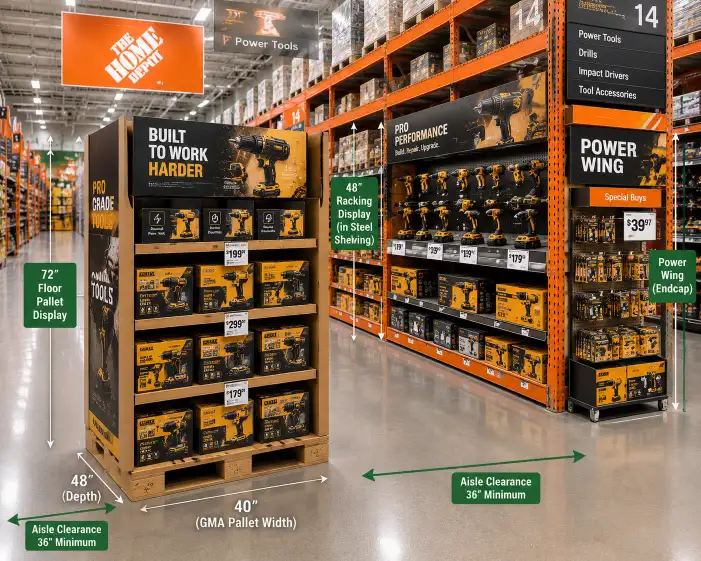

Floor Display vs Racking Display: Two Different Height Limits
Home Depot has two distinct display environments with different height limits. Understanding the difference is critical — a display designed for one will not work in the other.
Floor Displays
Floor displays sit on the sales floor, typically in main aisles or power aisles. These are the largest displays at Home Depot.
| Requirement | Floor Display |
|---|---|
| Maximum height | 72" including pallet |
| Placement | Main aisle, power aisle, seasonal area |
| Stability | Must pass 15-degree tilt test |
| Corner boards | Required for displays over 48" tall |
| Stretch wrap | 3-mil minimum, full coverage |
| Base | Must sit flush on pallet, no overhang exceeding 0.25" |
Racking Displays
Racking displays sit within Home Depot's steel shelving system — the same racks used for regular product stocking.
| Requirement | Racking Display |
|---|---|
| Maximum height | 48" (must fit within standard rack opening) |
| Placement | Within Home Depot steel racking system |
| Pallet | Must be 4-way entry for forklift access into rack |
| Overhang | Must fit within rack opening width |
| Stability | Must be stable when placed in rack — no leaning |
Designing for Both Environments
If your product could be placed in either a floor display or racking, consider:
| Strategy | Approach |
|---|---|
| Design for floor display (72") | Works only for floor placement |
| Design for racking (48") | Works for both racking and floor (shorter display) |
| Two versions | Produce 72" floor version and 48" racking version |
Pallet Type Requirements for Home Depot
Home Depot is the only major US retailer that accepts both GMA block pallets and stringer pallets. This gives vendors more flexibility in pallet sourcing.
GMA Block Pallet Specifications
| Feature | Requirement |
|---|---|
| Dimensions | 40" x 48" GMA block pallet |
| Entry type | 4-way entry |
| Deck board thickness | Minimum 3/8" |
| Deck board spacing | Maximum 3" apart |
| ISPM 15 | Required — heat treated (HT) |
Stringer Pallet Specifications
| Feature | Requirement |
|---|---|
| Dimensions | 40" x 48" stringer pallet |
| Entry type | 2-way entry (stringer) |
| ISPM 15 | Required — heat treated (HT) |
| Condition | No cracked stringers, no broken boards |
Pallet Condition Standards
| Condition | Home Depot Standard |
|---|---|
| Broken boards | Not accepted |
| Cracked stringers or blocks | Not accepted |
| Protruding nails | Maximum 1/8" |
| Stains / contamination | Not accepted |
| Repaired pallets | Not accepted |
| ISPM 15 stamp | Required — HT stamp must be legible |
Home Depot Endcap, Power Wing, and Sidekick Requirements
Home Depot uses endcaps for promotional displays and power wings / sidekicks for impulse purchases. All displays require pre-approval through the Home Depot merchandising team.
Endcap Display Requirements
| Specification | Home Depot Endcap |
|---|---|
| Width | 48" standard endcap width |
| Height | 72" (floor) or 48" (rack) depending on endcap configuration |
| Depth | Fits standard endcap depth |
| Placement | Endcap only — no power wings in regular aisles |
| Pre-approval | Required from Home Depot merchandising team |
| Approval timeline | Minimum 8 weeks before planned in-store date |
| Signage | Home Depot-approved signage only |
Power Wing Display Specifications
| Specification | Home Depot Requirement |
|---|---|
| Maximum width | 48" |
| Maximum depth from gondola | 24" |
| Maximum weight | 50 lbs total |
| Placement | Endcap or designated sidekick area only — not in regular aisles |
| Assembly | Pre-assembled by vendor — not by store associates |
| Attachment | Home Depot-approved hanging bar or pegboard system |
| Adhesive | Not permitted — mechanical attachment only |
| Signage | Home Depot-approved signage, attached to display not to shelf |
| Restocking | Vendor responsibility — failure to restock = $200–$500 fee |
Sidekick Display Specifications
| Specification | Home Depot Requirement |
|---|---|
| Maximum width | 24"–36" |
| Maximum depth from gondola | 24" |
| Maximum weight | 50 lbs |
| Minimum bottom height | 18" from floor (allows cleaning under gondola) |
| Aisle clearance | Minimum 4 feet clear width beyond the display |
| Attachment | Mounted on side of gondola — Home Depot-approved hardware |
| Assembly | Pre-assembled by vendor |
| Pre-approval | Required |
For more detail on power wing and sidekick design, see my sidekick display guide.
Structural and Material Requirements
Home Depot products are typically heavier than grocery products. Display structural requirements are more demanding as a result.
Board Grade Requirements
| Board Grade | ECT | Best Use |
|---|---|---|
| #275 double-wall | 44 ECT | Light hardware, packaged tools, accessories |
| #350 double-wall | 48+ ECT | Standard Home Depot floor displays |
| #440 triple-wall | 61+ ECT | Heavy tools, building materials, bulk hardware |
Structural Testing Requirements
| Test | Standard | Requirement |
|---|---|---|
| Tip-over stability | 15-degree tilt test | Display must not tip at 15° |
| Compression | ASTM D642 | Shelf strength under vertical load |
| Transport vibration | ISTA 3A or ASTM D4169 | Required for all display types |
| Drop test | ISTA 3A or ASTM D4169 | Must survive handling |
Corner Board Requirements
Home Depot requires corner boards on all displays over 48" tall:
| Display Height | Corner Boards Required |
|---|---|
| Under 48" | Optional (recommended) |
| 48"–72" | Required — all four corners |
| Over 72" | Not allowed without special approval |
Material and Safety Requirements
| Requirement | Home Depot Standard |
|---|---|
| Sharp edges | Not allowed — all corners rounded |
| Protruding hardware | Not allowed — must be flush or covered |
| Weight distribution | Evenly distributed, no single side over 60% |
| Stretch wrap | Minimum 3-mil, full coverage of display |
| Edge protectors | Required on all exposed edges for displays with glass |
For more detail on structural design, see my display fixture structural design guide.
Labeling and Barcode Requirements
Home Depot requires GS1-128 barcodes with GTIN-14 for all pallet displays. Labeling must comply with Home Depot's EDI and compliance standards.
Required Labels
| Label Type | Location | Information Required |
|---|---|---|
| GS1-128 pallet label | Outside of stretch wrap | GTIN-14, vendor ID, PO number, display weight, dimensions (L x W x H) |
| "FLOOR DISPLAY" or "MIXED DISPLAY" flag | Pallet label | Clearly marked display type |
| UPC barcode | Display structure — front panel | 12-digit UPC |
| Home Depot item number | Display structure | Home Depot internal SKU |
| Dimensions | Display structure | Length x Width x Height |
| Weight label | Display structure | Gross weight of loaded display |
| Price label | Front panel, visible | Home Depot-approved price label — no handwritten prices |
GS1-128 Label Specifications
| Requirement | Specification |
|---|---|
| Label size | 4" x 6" thermal transfer |
| Barcode type | GS1-128 with GTIN-14 |
| Label placement | Front-facing side of pallet, outside stretch wrap |
| Scannability | Must scan at first pass |
| Content | Vendor ID, PO number, display weight, dimensions, display flag |
Pallet Tag Requirements
| Information | Required |
|---|---|
| Vendor ID | Yes |
| PO number | Yes |
| Display gross weight | Yes |
| Display dimensions (L x W x H) | Yes |
| "FLOOR DISPLAY" or "MIXED DISPLAY" | Yes |
Home Depot Display Approval Process
All Home Depot displays require pre-approval through the Home Depot vendor compliance portal (vendor.homedepot.com).
Approval Stages
| Stage | What Happens | Timeline |
|---|---|---|
| 1. Design submission | Submit display concept with dimensions, materials, product fit, weight | 8–10 weeks before launch |
| 2. Planogram review | Home Depot merchandising team reviews against category planogram | 2–4 weeks |
| 3. Compliance review | Home Depot compliance team reviews against display specifications | 2 weeks |
| 4. Sample submission (if required) | Physical sample for fit test and stability test | 2 weeks |
| 5. Production approval | Written approval to begin bulk production | On approval |
Documents Required for Approval
| Document | Details |
|---|---|
| Display specification sheet | Dimensions, materials, weight, pallet type |
| Structural drawing | Die line, fold lines, assembly instructions |
| Material specification | Board grade, flute type, ECT rating |
| Product fit diagram | How products sit in the display, per-SKU |
| Weight calculation | Empty weight, loaded weight |
| Stability test results | 15-degree tilt test pass confirmation |
| Transport test results | ISTA 3A or ASTM D4169 pass confirmation |
| Corner board specification | If display over 48" |
| Label artwork | All labels with dimensions and placement |
What Home Depot Will Reject
| Issue | Why It Is Rejected |
|---|---|
| Display over 72" (floor) or 48" (racking) | Does not fit in the store environment |
| Display over 2,500 lbs without engineering sign-off | Safety risk |
| Missing corner boards on display over 48" | Structural risk during transport |
| Overhang exceeding 0.25" | Does not fit on pallet properly |
| Adhesive-based power wing attachment | Not approved — mechanical attachment required |
| Power wing in regular aisle (not endcap) | Violates merchandising rules |
| Missing GS1-128 label with GTIN-14 | Cannot process in DC |
| No pre-approval | All displays require prior approval |

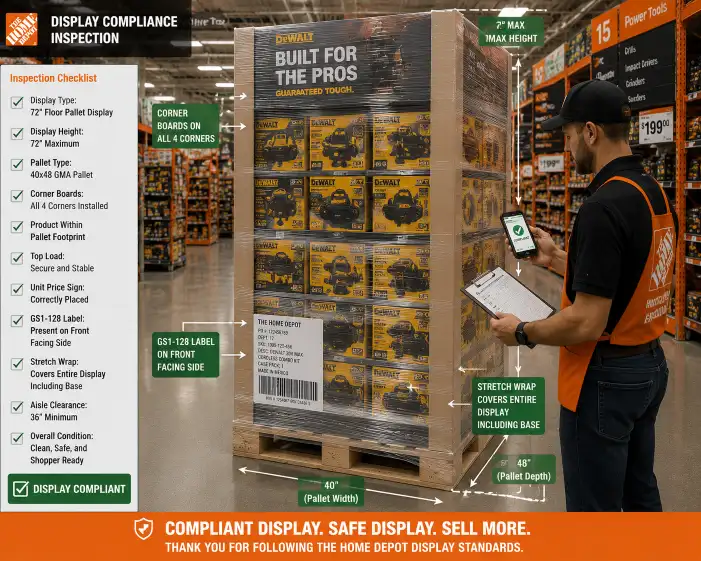

Compliance Checklist and Chargeback Prevention
Home Depot enforces compliance through chargebacks and display removal. Non-compliance fees typically range from $200 to $500 per violation.
Home Depot Compliance Violations
| Violation | Consequence |
|---|---|
| Display exceeds height limit | Display removed + chargeback |
| Missing corner boards | Chargeback — display may be rejected at DC |
| Missing GS1-128 label | Shipment may be refused |
| Power wing in wrong location | Display removed + $200–$500 chargeback |
| Missing pre-approval | Display removed + chargeback |
| Display not restocked (vendor responsibility) | $200–$500 non-compliance fee per occurrence |
| Overhang exceeds 0.25" | Pallet rejected at DC |
| Weight exceeds 2,500 lbs without sign-off | Shipment placed on hold |
Pre-Shipment Compliance Checklist
| Check | Details | Pass? |
|---|---|---|
| Display placement confirmed | Floor display or racking — design matches placement | ☐ |
| Pallet size confirmed | 40" x 48" GMA — block or stringer accepted | ☐ |
| ISPM 15 stamp confirmed | Heat treated (HT), legible | ☐ |
| Pallet condition inspected | No broken boards, cracks, protruding nails | ☐ |
| Display height measured | Under 72" (floor) or 48" (racking) | ☐ |
| Total weight verified | Under 2,500 lbs | ☐ |
| Overhang measured | Within 0.25" per side | ☐ |
| Corner boards installed | Required for displays over 48" tall | ☐ |
| 15-degree tilt test passed | Stability verified | ☐ |
| Transport test passed | ISTA 3A or ASTM D4169 | ☐ |
| GS1-128 label applied | Front-facing side, outside stretch wrap | ☐ |
| GTIN-14 barcode scannable | First-pass scan verified | ☐ |
| "FLOOR DISPLAY" or "MIXED DISPLAY" flag on label | Display type clearly marked | ☐ |
| UPC barcode applied | Display structure, scannable | ☐ |
| Price label applied | Home Depot-approved, no handwritten prices | ☐ |
| Stretch wrap applied | 3-mil minimum, full coverage | ☐ |
| No sharp edges or protruding hardware | All edges rounded | ☐ |
| Pre-approval confirmed | From Home Depot merchandising team | ☐ |
| ASN submitted | 24–48 hours before shipment | ☐ |
How We Prevent Home Depot Compliance Issues
We are fully capable of undertaking printing, packaging and display projects compliant with Home Depot standards. With years of rich practical experience and numerous successful cases, we strictly follow official certification specifications and quality requirements throughout production. Our professional quality control system ensures 100% smooth passing of all third-party authoritative inspections and verifications, delivering fully qualified compliant products for global business cooperation.
| Quality Stage | Our Process | Result |
|---|---|---|
| Pre-production | Spec review, placement confirmation, material selection | Eliminates design-level errors |
| Incoming material | Board grade, pallet type, corner board material verified | Materials meet Home Depot spec |
| In-process QC | Dimensional check, weight check, overhang measurement | Defects caught immediately |
| Stability testing | 15-degree tilt test performed | Display stability confirmed |
| Pre-shipment inspection | 100% of pallets checked for labels, corner boards, wrap | No errors reach the container |
| Documentation | Full traceability records for every batch | Audit-ready at any time |
For more on our quality control and compliance capabilities, see our GMI and CVS compliance guide.
FAQ
What are the standard dimensions for a Home Depot pallet display?
Standard dimensions are 40" x 48" GMA pallet footprint. Maximum height is 72" for floor displays and 48" for racking displays. Maximum weight is 2,500 lbs. Overhang tolerance is ±0.25" per side — the strictest overhang limit of any major retailer.
What type of pallet does Home Depot accept?
Home Depot is the only major US retailer that accepts both GMA block pallets and stringer pallets. All wood pallets must be heat-treated (HT) and ISPM-15 compliant. Deck boards must be minimum 3/8" thick with no more than 3" spacing. Pallet condition must be clean and undamaged.
What is the maximum height for a Home Depot floor display?
Home Depot allows up to 72" for floor displays (including the pallet). This matches Walmart's height limit. However, displays placed in racking are limited to 48" — the standard Home Depot rack opening height.
Does Home Depot require corner boards?
Yes. Corner boards are required on all displays over 48" tall. For floor displays between 48" and 72", corner boards on all four corners are mandatory. Corner boards protect the display during transport and handling.
What stability testing does Home Depot require?
Home Depot requires floor-standing displays to pass a 15-degree tilt test. The display must not tip over at 15 degrees of tilt. Home Depot also requires transport testing per ISTA 3A or ASTM D4169 for all display types.
Does Home Depot require displays to be pre-approved?
Yes. All displays must be pre-approved through the Home Depot vendor compliance portal at least 8 weeks before the planned in-store date. The approval process includes planogram review, compliance review, and may require physical sample submission.
What labels are required on a Home Depot pallet display?
GS1-128 pallet label with GTIN-14 on the outside of the stretch wrap (front-facing side). The label must include vendor ID, PO number, display weight, dimensions (L x W x H), and a "FLOOR DISPLAY" or "MIXED DISPLAY" flag. UPC barcode and Home Depot-approved price label are also required on the display structure.
What is the weight limit for Home Depot power wing displays?
Home Depot limits power wing and sidekick displays to 50 lbs total. Power wings are only allowed on endcaps or designated sidekick areas — not in regular aisles. The bottom of sidekick displays must be at least 18" from the floor for cleaning access.
How does Home Depot's pallet requirement differ from other retailers?
Home Depot is unique in accepting both GMA block pallets and stringer pallets. All other major retailers (Walmart, Target, Kroger, Publix, CVS, Walgreens) require GMA block pallets only. Home Depot also has the highest weight limit at 2,500 lbs and the strictest overhang tolerance at ±0.25".
What happens if my Home Depot display is non-compliant?
Non-compliant displays may be rejected at the distribution center (missing labels, overhang, damaged pallets) or removed from the sales floor (wrong location, missing pre-approval). Chargebacks range from $200 to $500 per violation. Vendors are also responsible for restocking power wing displays — failure to restock results in a $200–$500 non-compliance fee.
