A pallet display delivered to Kroger that exceeds 66 inches will not fit through the distribution center door. A PDQ that does not hold 40% of its own product weight collapses on the shelf. A display missing the GS1-128 label on the front-facing long side triggers a chargeback. Kroger operates over 2,700 stores across the United States under multiple banners — Kroger, Ralphs, Fred Meyer, King Soopers, Smith's, Fry's, and QFC — and each distribution center enforces the same display compliance standards.
A Kroger pallet display must meet specific requirements: 48" x 40" GMA pallet footprint, maximum 66" height including pallet, maximum 2,000 lbs weight, 4-inch minimum deck height from floor, and GS1-128 labeling on the front-facing long side. PDQ displays must hold over 40% of their own product weight, and endcap displays are limited to 60" height. Kroger enforces a 2-inch blemish rule — a single split board over 2 inches triggers automatic pallet rejection.
I have manufactured pallet displays for Kroger vendors for over 16 years. Kroger is the largest supermarket chain in the United States by revenue, operating across multiple banners and store formats. Kroger's display standards are distinct from Walmart and Target in several important ways — the 48" x 40" pallet footprint (reversed from the 40" x 48" used by most other retailers), the 40% product weight retention requirement for PDQs, and the strict pallet quality standards enforced across their distribution centers. This guide covers everything you need to design, manufacture, and ship a compliant Kroger pallet display that gets approved and avoids chargebacks.
Kroger Pallet Display Dimensions and Specs
Kroger's pallet display specifications differ from other major retailers in two significant ways: the pallet footprint is oriented 48" (length) x 40" (width), and the height limit is 66" for floor displays with strict enforcement.
Core Dimensions
| Specification | Floor Display | Endcap Display | Pallet Stack |
|---|---|---|---|
| Pallet footprint | 48" x 40" GMA | 48" x 40" GMA | 48" x 40" GMA |
| Maximum height | 66" (including pallet) | 60" (floor to top of sign) | 48" per tier |
| Maximum weight | 2,000 lbs gross | 1,500 lbs | 2,000 lbs per pallet |
| Minimum deck height | 4" from floor | 4" from floor | N/A |
| Overhang | Max 2" on pallet edge | Max 2" on pallet edge | Must be even |
| Underhang | 0" — must be flush or slightly over | 0" | 0" |
| Pallet type | GMA grade B or higher | GMA grade B or higher | GMA grade B or higher |
| Entry type | 4-way entry | 4-way entry | 4-way entry |
Height and Weight Limits by Store Area
| Store Area | Max Height | Max Weight | Notes |
|---|---|---|---|
| Floor display (grocery aisle) | 66" | 2,000 lbs | Standard for promotional pallet displays |
| Floor display (GM/non-food) | 66" | 1,500 lbs | Lower weight limit for general merchandise |
| Endcap display | 60" | 1,500 lbs | Measured floor to top of display sign |
| PDQ shelf display | Fits shelf height | 30 lbs per display | Shelf-ready shipper |
| Checkout / front end | 48" | 500 lbs | Limited space at register areas |
Kroger vs Other Retailers: Pallet Footprint Comparison
| Retailer | Pallet Footprint | Height | Max Weight | Unique Requirement |
|---|---|---|---|---|
| Kroger | 48" x 40" GMA | 66" | 2,000 lbs | 4" min deck height, 2" max overhang |
| Walmart | 48" x 40" GMA | 72" | 2,000 lbs | Stretch hood only, no shrink wrap |
| Target | 40" x 48" GMA | 48" (66" power aisle) | 1,500 lbs | White corrugate, visual aesthetic review |
| CVS | 40" x 48" GMA | 60" | 1,500 lbs | UCC-128 labels on two sides |
| Walgreens | 40" x 48" GMA | 60"–66" | 1,500 lbs | Zero-touch setup, under 3 minutes |
Key difference: Kroger orients the pallet 48" length x 40" width, while Target, CVS, and Walgreens use 40" x 48". Always verify the length/width orientation in the purchase order.
Weight Distribution Rules
| Requirement | Specification |
|---|---|
| Maximum gross weight (floor display) | 2,000 lbs per pallet |
| Maximum gross weight (endcap) | 1,500 lbs per pallet |
| Single side weight limit | No single side can exceed 60% of total pallet weight |
| Stacking weight per tier (DC) | 500 lbs per tier unless pre-approved |
| Center of gravity | Within middle 60% of pallet |
| Shelf load (PDQ shelves) | 15–20 lbs per linear foot |
Pallet Type Requirements for Kroger
Kroger enforces some of the strictest pallet quality standards in the industry. Kroger distribution centers use automated handling equipment, and pallets that fail quality inspection are rejected on arrival.
GMA Pallet Specifications
| Feature | Requirement |
|---|---|
| Dimensions | 48" x 40" GMA block pallet |
| Grade | GMA grade B or higher |
| Entry type | 4-way entry — required for forklift and pallet jack access |
| Pallet type | GMA block (no stringer pallets) |
| Wood quality | APA/FMI Tier 1 pallet standards |
The 2-Inch Blemish Rule
Kroger enforces a strict 2-inch blemish rule on all inbound pallets:
| Condition | Maximum Allowed | Action |
|---|---|---|
| Split board | < 2" from edge | Acceptable |
| Split board | > 2" from edge | Rejected — automatic chargeback |
| Broken corner | < 2" | Acceptable if structurally sound |
| Broken corner | > 2" | Rejected — automatic chargeback |
| Missing block | Any size | Rejected |
| Protruding nail | < 1/8" | Acceptable |
| Protruding nail | > 1/8" | Rejected |
| Warped deck board | < 1/4" warp | Acceptable |
| Warped deck board | > 1/4" warp | Rejected |
| Stains / contamination | Any visible | Rejected |

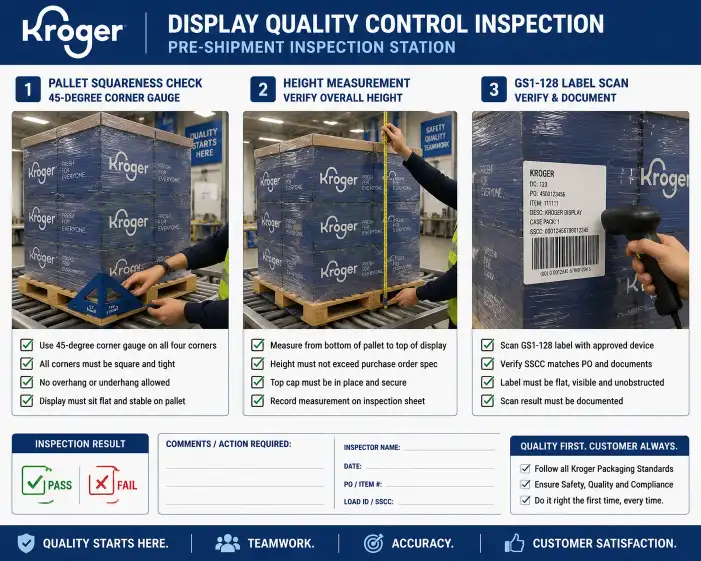

Pallet Condition Requirements
Kroger distribution centers inspect every inbound pallet. A single rejected pallet can trigger inspection of the entire shipment.
| Requirement | Kroger Standard |
|---|---|
| Pallet squareness | 45° corner check — must be perfectly square |
| Cleanliness | No dirt, stains, mold, or chemical residue |
| Repaired pallets | Not accepted — no reconditioned pallets |
| Tare weight | Must be clearly marked on pallet |
| Deck boards | All boards intact, no gaps over 3/8" |
| Bottom boards | All bottom boards present and sound |
Kroger PDQ Display and Shelf-Ready Requirements
Kroger uses PDQ displays extensively for grocery, general merchandise, and health and beauty categories. Kroger has a unique requirement that PDQ displays must hold over 40% of their own product weight.
The 40% Product Weight Retention Rule
Kroger requires that a PDQ display, when picked up by its hand holes or sides, must retain at least 40% of the product weight it holds. This prevents displays from collapsing or shedding product when carried by store associates.
| PDQ Type | Product Weight | Minimum Retention | Board Grade Needed |
|---|---|---|---|
| Light PDQ (under 10 lbs product) | 10 lbs | 4 lbs minimum retention | #200 B-flute or equivalent |
| Medium PDQ (10–25 lbs product) | 20 lbs | 8 lbs minimum retention | #275 BC-flute or equivalent |
| Heavy PDQ (25–50 lbs product) | 40 lbs | 16 lbs minimum retention | #350 BC-flute or equivalent |
PDQ Display Specifications
| Specification | Kroger Requirement |
|---|---|
| PDQ format | Floor-ready, ship as-is, tool-free setup |
| Placement | Shelf (primary) or endcap (secondary) |
| Maximum shelf PDQ width | Fits Kroger modular shelf — typically 18"–24" |
| Maximum shelf PDQ depth | 14"–16" (standard Kroger shelf depth) |
| Material | #200 corrugated minimum, #275 recommended |
| Hand holes | Required on both sides for carrying |
| Setup time | Under 30 seconds, no tools required |
| Product visibility | Clear sightline to product from front |
| Pricing area | Clear, visible, scannable barcode |
| "Kroger Approved" sticker | Required on display |
| Use-by date | Required for seasonal displays |
Kroger PDQ Strength Test
| Test | Standard | Pass Criteria |
|---|---|---|
| Product weight retention | 40% of product weight | Display holds product when lifted by hand holes |
| Side compression | 30 lbs force applied to side panel | No collapse or permanent deformation |
| Drop test (loaded) | 6" drop onto concrete | No structural damage, no product loss |
| Shelf load test | 1.5× intended product load | No sagging over 1/4" after 24 hours |
For more detail on PDQ structural design, see my PDQ display guide and display fixture structural design guide.
Kroger Endcap and Floor Display Requirements
Kroger uses endcap displays for promotional programs and floor displays for larger volume programs. Kroger operates under multiple banners with different store formats, but the display compliance requirements are consistent across all divisions.
Endcap Display Specifications
| Specification | Kroger Endcap |
|---|---|
| Maximum height | 60" (floor to top of display sign) |
| Maximum width | 48" (fits standard endcap width) |
| Maximum depth | 40" (pallet depth) |
| Maximum weight | 1,500 lbs |
| Pallet | 48" x 40" GMA grade B minimum |
| Bottom clearance | 4" minimum deck height from floor |
| Signage | Header card required, fits standard sign holder |
Floor Display Specifications
| Specification | Kroger Floor Display |
|---|---|
| Maximum height | 66" including pallet |
| Maximum weight | 2,000 lbs |
| Cross-strapping | Required for displays over 48" tall |
| Top cap | Required for any stacked display |
| Bottom layer stabilization | Glue or tray required for full pallet floor displays |
| Stretch wrap | Minimum 3 mil thickness, vented wrap preferred for produce |
Cross-Strapping and Top Cap Requirements
For floor displays over 48" tall, Kroger requires cross-strapping or equivalent stabilization to prevent the display from shifting during transport.
| Display Height | Cross-Strapping Required | Top Cap Required |
|---|---|---|
| Under 48" | No | No |
| 48"–66" | Yes — minimum 2 straps | Yes |
| Over 66" | Not allowed | Not allowed |
Material and Structural Requirements
Kroger requires all display materials to meet specific structural and sustainability standards.
Board Grade Requirements
| Board Grade | ECT | Minimum Use |
|---|---|---|
| #200 single-wall | 32 ECT | Light PDQ displays, shelf trays |
| #275 double-wall | 44 ECT | Standard PDQ displays, recommended minimum |
| #350 double-wall | 48+ ECT | Heavy PDQ displays, floor displays |
Corrugated Board Specifications
| Flute | Thickness | Best For |
|---|---|---|
| E-flute | 1/16" | Shelf PDQs, best print quality |
| B-flute | 1/8" | Standard PDQs and displays |
| C-flute | 3/16" | Structural components, vertical panels |
| BC-flute | 1/4" | Heavy-duty displays, pallet displays |
Display Structural Requirements
| Requirement | Standard |
|---|---|
| Side compression | Must withstand 30 lbs force without permanent deformation |
| Drop test (loaded) | 6" drop onto concrete, no structural damage |
| Shelf load test | 1.5× intended product load for 24 hours |
| Product retention | PDQ must hold 40% of product weight when lifted |
| Stability | Must pass 15-degree tilt test without tipping |
Sustainability Requirements
| Requirement | Kroger Standard |
|---|---|
| Recyclability | 100% recyclable materials |
| Loose fill | Not allowed — no Styrofoam peanuts |
| Corrugated inserts | Preferred for product protection |
| Air pillows | Acceptable alternative to loose fill |
| Stretch wrap | Minimum 3 mil thickness |
Labeling and Barcode Requirements
Kroger uses GS1-128 barcodes for all pallet labels. Label placement is specifically defined on the front-facing long side of the pallet.
Required Labels
| Label Type | Location | Information Required |
|---|---|---|
| GS1-128 pallet label | Front-facing long side of pallet, outside stretch wrap | SSCC-18, PO number, ship-to location, item description, case pack, total units |
| UPC barcode | Display structure | 12-digit UPC |
| Kroger item number | Display structure | Kroger internal SKU |
| "Kroger Approved" sticker | Display structure | Provided or approved by Kroger buyer |
| Use-by date | Display structure | Required for seasonal displays |
| Tare weight | Pallet | Clearly marked |
GS1-128 Label Specifications
| Requirement | Specification |
|---|---|
| Label placement | 6–12 inches from top left corner of front face |
| Label orientation | Facing the forklift driver |
| Label size | 4" x 6" thermal transfer |
| Barcode type | GS1-128, minimum 1.25" height |
| Scannability | Must scan at first pass |
| Stretch wrap | Label goes on the outside of the stretch wrap |
Pallet Label Placement Diagram
| Pallet Side | Label Required | Notes |
|---|---|---|
| Front (long side, facing forklift) | GS1-128 | Primary label location |
| Right side | GS1-128 | Secondary — required for DC scanning |
| Left side | Not required | Optional |
| Back | Not required | Optional |
Kroger Display Approval Process
All displays must be pre-approved by Kroger before production. The approval process is managed through the Kroger Supplier Connect portal.
Approval Stages
| Stage | What Happens | Timeline |
|---|---|---|
| 1. Design submission | Submit display concept with dimensions, materials, product fit | 8–10 weeks before launch |
| 2. Planogram review | Kroger category team reviews against store planogram | 2–4 weeks |
| 3. Compliance review | Kroger compliance team reviews against display specifications | 2 weeks |
| 4. Sample approval | Physical sample submitted for fit test and strength test | 2 weeks |
| 5. Production approval | Written approval to begin bulk production | On sample approval |
Documents Required for Approval
| Document | Details |
|---|---|
| Display specification sheet | Dimensions, materials, weight, pallet type |
| Structural drawing | Die line, fold lines, assembly instructions |
| Material specification | Board grade, flute type, ECT rating |
| Product weight retention calculation | Proof of 40% minimum product weight retention |
| Product fit diagram | How products sit in the display, per-SKU |
| Weight calculation | Empty weight, loaded weight, per-shelf weight |
| Label artwork | All labels with dimensions and placement |
| Setup instructions | Step-by-step, must fit on one page |
Compliance Checklist and Chargeback Prevention
Kroger enforces compliance through chargebacks and shipment rejections. Understanding the compliance checkpoints is essential for preventing financial losses.
Pre-Shipment Compliance Checklist
| Check | Details | Pass? |
|---|---|---|
| Pallet size confirmed | 48" x 40" GMA block — verify orientation | ☐ |
| Pallet grade confirmed | GMA grade B or higher | ☐ |
| Pallet condition inspected | No split boards over 2", no broken corners, no protruding nails | ☐ |
| Pallet squareness verified | 45° corner check | ☐ |
| Tare weight marked | Clearly visible on pallet | ☐ |
| Display height measured | Under 66" (60" for endcap) | ☐ |
| Total weight verified | Under 2,000 lbs | ☐ |
| Deck height measured | Minimum 4" from floor to bottom of product | ☐ |
| Overhang checked | Maximum 2" on pallet edge | ☐ |
| Cross-strapping installed | Required for displays over 48" tall | ☐ |
| Top cap installed | Required for stacked displays | ☐ |
| Bottom layer stabilized | Glue or tray for full pallet floor displays | ☐ |
| GS1-128 label applied | Front-facing long side, 6–12" from top left corner | ☐ |
| GS1-128 label scannable | First-pass scan verified | ☐ |
| Upc barcode applied | Display structure, scannable | ☐ |
| "Kroger Approved" sticker applied | Display structure | ☐ |
| Product weight retention tested | 40% minimum | ☐ |
| PDQ drop test passed | 6" drop, no damage | ☐ |
| Stretch wrap applied | Minimum 3 mil, on pallet base | ☐ |
| ASN submitted | 24–48 hours before shipment | ☐ |
How We Prevent Kroger Chargebacks
We are fully capable of undertaking printing, packaging and display projects compliant with Kroger standards. With years of rich practical experience and numerous successful cases, we strictly follow official certification specifications and quality requirements throughout production. Our professional quality control system ensures 100% smooth passing of all third-party authoritative inspections and verifications, delivering fully qualified compliant products for global business cooperation.
| Quality Stage | Our Process | Result |
|---|---|---|
| Pre-production | Spec review, material verification, pallet grade confirmation | Eliminates spec errors before production |
| Incoming material | Board grade, pallet quality, ECT rating verified | Materials meet Kroger standards |
| In-process QC | Dimensional check, weight check, overhang measurement | Defects caught immediately |
| Product weight retention test | 40% minimum retention verified | PDQ passes Kroger strength test |
| Pre-shipment inspection | 100% of pallets checked for condition, labels, squareness | No errors reach the container |
| Documentation | Full traceability records for every batch | Audit-ready at any time |
For more on our quality control and compliance capabilities, see our GMI and CVS compliance guide.
FAQ
What are the standard dimensions for a Kroger pallet display?
Kroger requires a 48" x 40" GMA pallet footprint (note: length is 48", width is 40"). Maximum height is 66" for floor displays including pallet, 60" for endcaps. Maximum weight is 2,000 lbs for floor displays. Minimum deck height is 4" from floor.
What type of pallet does Kroger require?
Kroger requires GMA-grade B or higher block pallets with four-way entry. Pallet size is 48" x 40". Kroger enforces a strict 2-inch blemish rule — any split board or broken corner over 2 inches triggers automatic rejection. Repaired or reconditioned pallets are not accepted.
What is Kroger's 40% product weight retention rule?
Kroger requires that a PDQ display must retain at least 40% of its product weight when lifted by its hand holes or sides. This prevents displays from collapsing or shedding product when carried by store associates. This rule affects board grade selection — a #200 board may not be sufficient for heavier products.
What labels are required on a Kroger pallet display?
GS1-128 pallet label on the front-facing long side (6–12 inches from top left corner), UPC barcode, Kroger item number, "Kroger Approved" sticker, use-by date (for seasonal displays), and tare weight on the pallet.
What is the Kroger 2-inch blemish rule?
Kroger rejects any pallet with a split board or broken corner exceeding 2 inches from the edge. This is one of the strictest pallet quality standards in the industry. Pallets with protruding nails over 1/8" or any visible contamination are also rejected.
What board grade is required for Kroger displays?
Kroger requires #200 corrugated minimum for PDQ displays, but #275 double-wall BC-flute is recommended for most applications to meet the 40% product weight retention standard. Floor displays should use #275 or #350 depending on product weight and display height.
Does Kroger require displays to be pre-approved?
Yes. All displays must be pre-approved through the Kroger Supplier Connect portal before production. The approval process includes planogram review, compliance review, structural testing, and sample approval. Lead time is 8–10 weeks before the planned launch date.
What is Kroger's endcap display height limit?
Kroger endcap displays are limited to 60" from floor to top of the display sign. This is lower than the 66" maximum for standard floor displays. Endcap width is 48" to fit the standard endcap fixture.
How does Kroger's pallet size differ from other retailers?
Kroger uses a 48" x 40" GMA pallet (length is 48"). Target, CVS, and Walgreens use a 40" x 48" GMA pallet (length is 40"). Walmart also uses 48" x 40" but with a 72" height limit compared to Kroger's 66". Always verify the pallet orientation in the purchase order.
What are Kroger's cross-strapping requirements?
Kroger requires cross-strapping or equivalent stabilization for any floor display over 48" tall. A top cap is also required for stacked displays. Bottom layer stabilization (glue or tray) is required for full pallet floor displays to prevent product telescoping during transport.
