A pallet display with beautiful litho-lam printing arrives at the retailer — but the glossy surface scuffs during transit, and the store rejects it. A different brand runs the same display with flexo printing on recycled board, saving 40% on print cost, and the store approves it for 2,000 locations. The difference was not in the structural design — it was in the printing method and finish selection.
The three primary printing methods for corrugated retail displays are flexographic (flexo) direct print, lithographic lamination (litho-lam), and digital UV print. Flexo offers the lowest cost for high volumes, litho-lam delivers the highest photographic quality for premium displays, and digital UV provides the fastest turnaround for short runs with zero plate costs. Finishing options like gloss lamination, UV coating, aqueous coating, and spot UV further determine display durability, appearance, and cost.
I have manufactured printed corrugated displays for over 16 years. In that time, I have seen brands waste thousands of dollars selecting the wrong printing method — overspending on litho-lam for a short-run program that could have used digital UV, or ordering flexo for a premium retail display that needed the quality of litho-lam. This guide covers every printing method and finishing option available for corrugated displays, with cost comparisons, quality assessments, and selection criteria for each.
Overview of Corrugated Display Printing Methods
There are three primary ways to print on corrugated board for retail displays. Each method has distinct advantages in quality, cost, speed, and durability.
| Method | Print Quality | Setup Cost | Per-Unit Cost at 1,000 Units | Run Length Sweet Spot |
|---|---|---|---|---|
| Flexo direct print | Fair to good (150 lpi max) | Low to moderate ($200–$800 plates) | $3.50–$6.00 | 1,000–50,000+ units |
| Litho-lam | Excellent (300 lpi, photographic) | High ($800–$2,500 plates + mounting) | $5.00–$10.00 | 500–20,000 units |
| Digital UV | Excellent (high DPI, variable data) | Very low ($0 plates) | $6.00–$12.00 | 1–2,000 units |
Flexo is the workhorse of the corrugated industry. Litho-lam produces the best visual appearance. Digital UV is the fastest and most flexible for short runs. The right choice depends on your quantity, quality requirements, budget, and timeline.
Flexographic (Flexo) Direct Print
Flexo printing is the most common method for printing directly onto corrugated board. It uses flexible rubber or photopolymer plates mounted on rotating cylinders to transfer ink directly to the corrugated surface.
How Flexo Works
| Stage | Description |
|---|---|
| Plate making | Flexible photopolymer plates are created from your artwork — one plate per color |
| Mounting | Plates are mounted on print cylinders using precise registration |
| Ink application | Anilox roller transfers a controlled thickness of ink to the plate surface |
| Impression | Plate contacts the corrugated board, transferring the image |
| Drying | Water-based or UV inks dry quickly between color stations |
| Repeat | Board moves through one station per color (typically 2–6 colors total) |
Flexo Specifications
| Parameter | Standard Flexo | High-Quality Flexo (Pre-print) |
|---|---|---|
| Maximum colors | 2–4 standard, up to 6 | Up to 8 (pre-print on liner) |
| Line screen | 85–120 lpi | 120–150 lpi |
| Minimum font size | 6–8 pt | 4–6 pt |
| Registration accuracy | ±1/32" | ±1/64" |
| Ink type | Water-based or UV | Water-based or UV |
| Board compatibility | Any corrugated board (single, double, triple-wall) | Single-wall and double-wall (pre-print on liner) |
| Print speed | Up to 15,000 sheets/hour | Up to 20,000 sheets/hour |
When to Use Flexo
Flexo is the right choice when:
- Your run quantity exceeds 2,000 units
- The display uses 2–4 colors (simple to moderate artwork)
- Print quality requirements are "good" rather than "photographic"
- You need the lowest per-unit cost for a large program
- The display will be used in a warehouse club or mass retail setting where moderate print quality is acceptable
Flexo is not ideal when:
- Your artwork requires photographic-quality images
- The design uses fine type (under 6 pt) or thin lines
- You need CMYK process printing with full color range (flexo process is possible but requires high skill)
- The run quantity is under 500 units (setup cost per unit is too high)
Flexo Cost Factors
| Cost Component | Typical Range | Notes |
|---|---|---|
| Plate cost (per color) | $50–$200/plate | Depends on size and complexity |
| Plate mounting | $20–$50/set | Per run |
| Setup/makeready | $100–$300/run | Per press setup |
| Per-unit print cost | $0.50–$2.00 | Decreases significantly with volume |
| Total setup cost (2–4 color) | $200–$1,000 | Recoverable over large runs |
For more on corrugated board grades used in flexo printing, see my cardboard display guide.

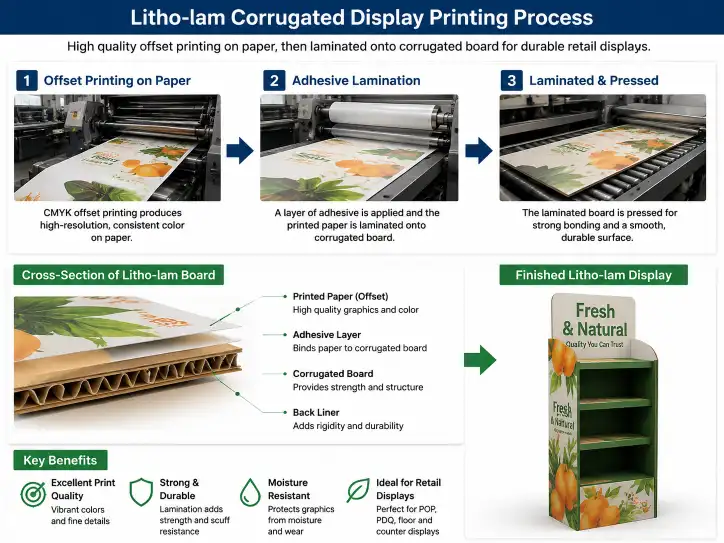

Lithographic Lamination (Litho-Lam)
Litho-lam is a two-step process. First, the artwork is offset-printed onto thin paper (typically 80–120 lb text or cover stock). Then the printed sheet is laminated onto corrugated board. This produces the highest quality print surface available for corrugated displays.
How Litho-Lam Works
| Stage | Description |
|---|---|
| Offset printing | Artwork is printed on thin paper using offset lithography — up to 300 lpi with CMYK + spot colors |
| Drying and coating | Printed sheets are dried and finished (aqueous, UV, or lamination) |
| Adhesive application | Adhesive is applied to the corrugated board |
| Mounting | The printed litho sheet is precisely aligned and mounted onto the corrugated board |
| Drying under pressure | The combined board is dried under controlled pressure to prevent warpage |
| Die cutting and folding | The laminated board is die cut and folded like standard corrugated |
Litho-Lam Specifications
| Parameter | Standard Litho-Lam | Premium Litho-Lam |
|---|---|---|
| Maximum print resolution | 200–300 lpi | 300 lpi+ |
| Color gamut | CMYK + up to 6 spot colors | CMYK + up to 8 spot colors + metallic |
| Substrate paper | 80 lb text to 120 lb cover | 100 lb cover to 18 pt SBS |
| Board compatibility | E-flute, B-flute, F-flute, single-wall | E-flute, F-flute, N-flute (best print surface) |
| Lamination thickness | 0.006"–0.020" litho paper on corrugated | Premium paper with film laminate |
| Warpage control | Requires careful drying process | Full climate-controlled process |
When to Use Litho-Lam
Litho-lam is the right choice when:
- Your display requires photographic-quality imagery
- The design includes fine type, small logos, or intricate details
- The display is for a premium retail environment (department stores, specialty retail)
- Brand guidelines require specific Pantone color accuracy
- The display will be used in a Target or specialty retailer with high visual standards
- You need a combination of premium print with the structural strength of corrugated
Litho-lam is not ideal when:
- Your budget is tight (litho-lam is the most expensive option)
- You need fast turnaround (the two-step process takes longer)
- Run quantity is under 300 units (setup cost is prohibitive)
- The display will be exposed to high humidity (lamination can delaminate)
Litho-Lam Cost Factors
| Cost Component | Typical Range | Notes |
|---|---|---|
| Offset plate cost (per color) | $100–$300/plate | CMYK = 4 plates minimum |
| Lamination mounting setup | $200–$500 | Requires precise registration setup |
| Litho paper stock | $0.20–$1.00/sheet | Depends on paper weight and size |
| Adhesive | $0.10–$0.30/sheet | Water-based or hot-melt |
| Per-unit print + laminate cost | $2.00–$6.00 | Higher than flexo at all volumes |
| Total setup cost | $800–$2,500+ | Highest setup of all three methods |
Digital UV Printing
Digital UV printing uses inkjet technology to print directly onto corrugated board. UV-curable inks are jetted onto the surface and instantly cured by UV lamps. No plates are needed, making this the most flexible method for short-run and custom work.
How Digital UV Works
| Stage | Description |
|---|---|
| File preparation | Artwork is prepared as a digital file — no plates required |
| Board feeding | Corrugated board is fed into the printer on a flatbed or roll-fed system |
| Inkjet printing | Piezo print heads jet UV-curable ink onto the board surface |
| Instant curing | UV lamps cure each layer of ink as it is applied |
| White ink (optional) | White layer can be printed first for color vibrancy on brown kraft |
| Multiple passes | Additional passes build color density or add texture effects |
Digital UV Specifications
| Parameter | Standard Digital UV | High-End Digital UV |
|---|---|---|
| Maximum resolution | 600 × 1200 DPI | 1200 × 2400 DPI |
| Color gamut | CMYK + white | CMYK + white + up to 2 spot colors |
| Maximum board thickness | Up to 1.5" (varies by printer) | Up to 2.5" (flatbed systems) |
| Maximum sheet size | 64" × 120" (varies) | 126" × 240" (flatbed) |
| Print speed | 200–1,000 sq ft/hour | Up to 3,000 sq ft/hour |
| Ink type | UV-curable | UV-curable (low migration for food-safe) |
When to Use Digital UV
Digital UV is the right choice when:
- Your run quantity is under 1,000 units
- You need fast turnaround (24–72 hours for printing)
- The design requires variable data (different text, images, or languages per display)
- You want to test a display design before committing to a large flexo run
- The artwork requires fine detail and photographic quality without plate costs
- You need to produce displays for multiple retail programs with different branding
Digital UV is not ideal when:
- Your run quantity exceeds 5,000 units (per-unit cost is higher than flexo)
- The display must be produced at maximum speed (flexo is faster at high volume)
- You are using very dark or heavily recycled board (white ink layer increases cost)
- Your budget is optimized for lowest per-unit cost at high volume
Digital UV Cost Factors
| Cost Component | Typical Range | Notes |
|---|---|---|
| File setup | $50–$200 | Color management and RIP processing |
| Material waste | 1–3 sheets | Proofing and calibration |
| Per-unit print cost | $3.00–$10.00 | Higher than flexo at volume, lower at low runs |
| White ink surcharge | +20–40% | When printing on brown kraft |
| Total setup cost | $50–$200 | No plates — significantly lower than flexo or litho-lam |
Printing Method Comparison
Side-by-Side Comparison
| Factor | Flexo | Litho-Lam | Digital UV |
|---|---|---|---|
| Print quality | Fair to good | Excellent (photographic) | Excellent |
| Resolution | 85–150 lpi | 200–300 lpi | 600–2400 DPI |
| Color accuracy | Moderate | Excellent (Pantone match) | Good to excellent |
| Setup cost | $200–$1,000 | $800–$2,500 | $50–$200 |
| Per-unit cost (1,000) | $3.50–$6.00 | $5.00–$10.00 | $6.00–$12.00 |
| Per-unit cost (10,000) | $2.00–$3.50 | $3.50–$6.00 | $7.00–$14.00 |
| Minimum quantity | 300 | 200 | 1 |
| Turnaround time | 7–14 days | 10–20 days | 3–7 days |
| Durability | Good (inks may scuff) | Very good (lamination protects) | Very good (UV-cured, scratch-resistant) |
| Board compatibility | All corrugated grades | E, F, N, B-flute best | All corrugated grades |
| Variable data | Not practical | Not practical | Yes (each display can be unique) |
| Best for | High-volume, cost-sensitive programs | Premium retail displays, photographic quality | Short runs, prototypes, fast turnaround |
Print Method Selection Matrix
| If Your Priority Is… | Choose… | Why |
|---|---|---|
| Lowest cost at 10,000+ units | Flexo | Per-unit cost 50–70% lower than digital UV |
| Highest print quality | Litho-lam | 300 lpi offset printing with full lamination |
| Fastest turnaround on short run | Digital UV | No plates, 24–72 hour printing turnaround |
| Photographic images on corrugated | Litho-lam or digital UV | Both exceed 600 DPI equivalent |
| Variable data per display | Digital UV | Only method that supports versioning |
| Display for Target (white corrugate) | Flexo or litho-lam | White board with flexo is most cost-effective |
| Prototype or test run under 50 units | Digital UV | Zero plate cost, pay only for what you print |
| Premium in-store experience | Litho-lam | The standard for department store and specialty retail |
Durability Comparison by Finishing
| Finish | Flexo | Litho-Lam | Digital UV |
|---|---|---|---|
| Raw/uncoated | Moderate (ink scuffs) | Moderate (paper scuffs) | Good (UV ink is tougher) |
| Aqueous coating | Good | Very good | Not typically needed |
| UV coating (full) | Very good | Excellent | Already UV-cured — no additional needed |
| Gloss lamination | N/A (applied) | Excellent (protects print) | N/A |
| Matte lamination | N/A | Excellent (reduces glare) | N/A |

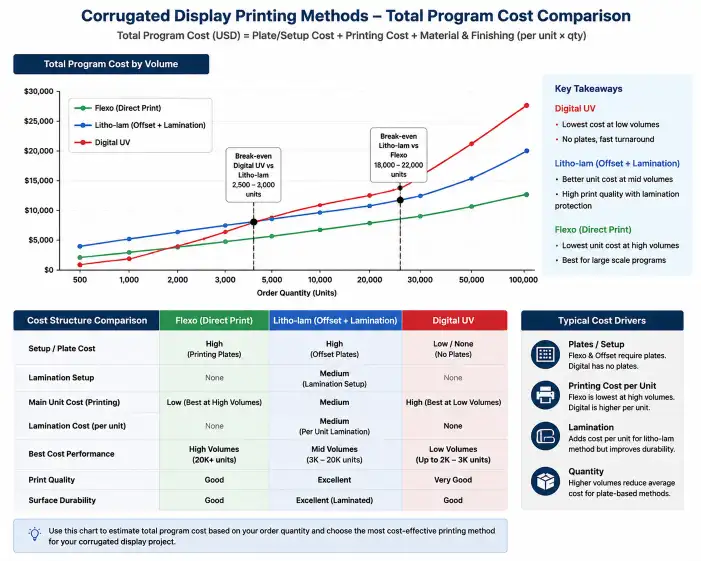

Cost Analysis by Print Method and Volume
Understanding the true cost of each printing method requires analyzing setup costs and per-unit costs together. This table shows total cost per 1,000 displays including setup.
Total Program Cost Comparison
| Volume | Flexo Total | Flexo Per Unit | Litho-Lam Total | Litho-Lam Per Unit | Digital UV Total | Digital UV Per Unit |
|---|---|---|---|---|---|---|
| 100 units | $800–$1,800 | $8.00–$18.00 | $2,000–$4,000 | $20.00–$40.00 | $700–$1,500 | $7.00–$15.00 |
| 500 units | $1,800–$3,800 | $3.60–$7.60 | $3,000–$6,500 | $6.00–$13.00 | $3,500–$6,500 | $7.00–$13.00 |
| 1,000 units | $3,500–$6,500 | $3.50–$6.50 | $5,500–$10,500 | $5.50–$10.50 | $6,500–$12,500 | $6.50–$12.50 |
| 3,000 units | $7,500–$12,000 | $2.50–$4.00 | $13,500–$24,000 | $4.50–$8.00 | $21,000–$42,000 | $7.00–$14.00 |
| 10,000 units | $20,000–$35,000 | $2.00–$3.50 | $35,000–$60,000 | $3.50–$6.00 | $70,000–$140,000 | $7.00–$14.00 |
Break-Even Points
| Comparison | Break-Even Quantity | Notes |
|---|---|---|
| Digital UV → Flexo | 500–1,000 units | Digital UV is cheaper below this; flexo is cheaper above |
| Digital UV → Litho-lam | 200–500 units | Digital UV is cheaper below this; litho-lam is cheaper above at moderate quality |
| Flexo → Litho-lam | 5,000–10,000 units | Flexo is cheaper below this; litho-lam can be comparable above this depending on quality needed |
Hidden Costs to Consider
| Cost | Flexo | Litho-Lam | Digital UV |
|---|---|---|---|
| Design for print (pre-press) | $200–$500 | $300–$800 | $100–$300 |
| Color proofing | $50–$200 | $100–$300 | Included in setup |
| Plate/cylinder storage | $20–$50/month | $20–$50/month | Not required |
| Rework due to registration issues | +5–10% waste | +3–8% waste | +1–3% waste |
| Minimum order premium | +15–25% below 500 units | +20–30% below 300 units | None |
Finishing Options for Corrugated Displays
The finishing applied to a printed display affects its appearance, durability, feel, and cost. Each finishing option serves a different purpose.
Finishing Method Reference
| Finish | Appearance | Durability | Cost Premium | Best Application |
|---|---|---|---|---|
| No coating / raw | Natural matte board finish | Low — ink and paper are unprotected | 0% (baseline) | Short-term displays, warehouse clubs |
| Aqueous coating | Clear, smooth matte or gloss | Good — protects against light scuffing | +5–10% | Standard retail displays, moderate protection |
| UV coating (full) | High-gloss, reflective | Excellent — scratch and scuff resistant | +10–20% | Premium displays, high-touch retail environments |
| Spot UV | Selective high-gloss areas on matte board | Excellent on coated areas | +15–25% | Luxury displays, brand accent features |
| Gloss lamination | Shiny, smooth plastic film | Very high — protects against moisture and scuffs | +20–35% | Long-duration displays, refrigerated environments |
| Matte lamination | Non-reflective, soft-touch feel | Very high — protects against moisture and scuffs | +20–35% | Premium displays with sophisticated aesthetic |
| Soft-touch coating | Velvet-like tactile feel | Moderate — can scuff over time | +25–40% | Luxury packaging, premium brand displays |
| Embossing | Raised surface texture | Good — adds dimensional feel | +15–30% | Logo emphasis, brand identity elements |
| Foil stamping | Metallic accent areas (gold, silver, copper) | Good — catches light and attention | +20–50% | Holiday displays, premium launches |
Finishing Decision Matrix
| Condition | Choose | Why |
|---|---|---|
| Display will be touched by customers | UV coating or lamination | Protects against fingerprint oils and scuffing |
| Display is for a refrigerated environment | Gloss lamination | Water-resistant, prevents moisture damage |
| Display is short-term (4 weeks or less) | Aqueous or no coating | Lowest cost, sufficient for the duration |
| Display is for a premium brand launch | Matte lamination + spot UV | Sophisticated look with high-impact accents |
| Display needs to survive 6+ months in store | Lamination (gloss or matte) | Best long-term durability |
| Display is in a warehouse club (Costco/Sam's) | Aqueous coating | Moderate protection, low cost, recyclable |
| Display requires a luxury tactile feel | Soft-touch coating | Velvet finish signals premium quality |
Sustainability Impact of Finishes
| Finish | Recyclability | Recycled Content Compatible | Notes |
|---|---|---|---|
| No coating | 100% recyclable | Yes | Best for sustainability programs |
| Aqueous coating | 100% recyclable | Yes | Water-based, fully recyclable |
| UV coating | Limited recyclability | Yes | Can interfere with repulping |
| Gloss lamination | Not recyclable (mixed materials) | No | Plastic film prevents recycling |
| Matte lamination | Not recyclable (mixed materials) | No | Plastic film prevents recycling |
| Soft-touch coating | Limited recyclability | Yes | Depends on specific chemistry |
| Foil stamping | Not recyclable | Yes | Metallic content interferes with recycling |
For sustainability requirements at specific retailers, see my Walmart pallet display requirements and Target pallet display requirements.
How to Select the Right Print Method and Finish
I use a five-factor decision framework to help clients select the optimal print method and finish for their retail display program.
The Five-Factor Framework
| Factor | Questions to Ask | Impact on Decision |
|---|---|---|
| 1. Volume | How many displays will be produced? | 1–500 = digital UV, 500–5,000 = depends on quality, 5,000+ = flexo or litho-lam |
| 2. Quality | What print quality does the brand require? Does the retailer have visual standards? | Photographic = litho-lam or digital UV, moderate = flexo |
| 3. Environment | Where will the display be placed? How long will it be in the store? | High-traffic or long-duration = lamination or UV coating, short-term = aqueous or none |
| 4. Budget | What is the total program budget? What is the per-unit target? | Tight budget = flexo + aqueous, premium budget = litho-lam + lamination |
| 5. Timeline | When are displays needed in stores? | Fast turnaround = digital UV, standard delivery = flexo or litho-lam |
Decision Workflow
Step 1: Determine volume
↓
Step 2: Determine quality requirement
↓
Step 3: Match volume + quality to print method
↓
Step 4: Determine display environment and duration
↓
Step 5: Select finish based on environment and budget
↓
Step 6: Verify sustainability requirements (recycled content, recyclability)
↓
Step 7: Request samples from manufacturer
↓
Step 8: Approve method and finish before productionCommon Combinations
| Display Type | Typical Print Method | Typical Finish |
|---|---|---|
| Walmart pallet display | Flexo (2–4 color) | Aqueous coating |
| Target power aisle display | Flexo on white board (4–6 color) or litho-lam | UV coating or matte lamination |
| Costco pallet display | Flexo (2–4 color) | Aqueous or no coating |
| CVS sidekick | Flexo (4 color) or digital UV | Aqueous coating |
| Premium department store display | Litho-lam | Matte lamination + spot UV |
| Short-run test display (under 100 units) | Digital UV | UV coating (already cured) |
| Holiday promotional display | Flexo with foil stamping or litho-lam with foil | UV coating |
For structural design considerations that complement print selection, see my display fixture structural design guide.
FAQ
What is flexo printing for corrugated displays?
Flexo (flexographic) printing uses flexible rubber or photopolymer plates to transfer ink directly onto corrugated board. It is the most common and cost-effective method for high-volume corrugated display production, typically using 2–6 colors with resolution up to 150 lpi.
What is litho-lam printing?
Litho-lam (lithographic lamination) is a two-step process where artwork is offset-printed onto high-quality paper, then laminated onto corrugated board. It produces the highest print quality available for corrugated displays — up to 300 lpi with photographic resolution.
What is digital UV printing for displays?
Digital UV printing uses inkjet technology to print UV-curable inks directly onto corrugated board, with instant curing under UV lamps. No printing plates are needed, making it ideal for short runs, prototypes, and variable data applications.
Which printing method is cheapest for corrugated displays?
Flexo direct print is the cheapest method at high volumes (5,000+ units), with per-unit costs as low as $2.00–$3.50. Digital UV is cheapest for short runs under 500 units because there are no plate costs. Litho-lam is the most expensive method at all volumes.
What is the difference between aqueous coating and UV coating?
Aqueous coating is a water-based, clear coating applied to printed surfaces. It provides moderate scuff protection and is 100% recyclable. UV coating is a plastic-based coating cured by ultraviolet light. It provides excellent scratch and scuff resistance but is not recyclable.
When should I use lamination on a corrugated display?
Use lamination (gloss or matte) when the display will be in high-traffic retail environments, refrigerated sections, or needs to survive 6+ months in a store. Lamination provides the best protection against scuffs, moisture, and handling damage.
Can I print on recycled corrugated board?
Yes. Recycled corrugated board prints well with all three methods, but colors will appear less vibrant on brown kraft. For brighter colors, specify white-top or bleached linerboard, or use a white ink under-layer with digital UV printing.
What is the minimum order quantity for printed corrugated displays?
Minimum order quantities vary by method: digital UV has no minimum (you can order 1 display), litho-lam typically requires 200–300 units due to setup costs, and flexo requires 300–500 units to be cost-effective. Some manufacturers may accept lower quantities at a premium.
How should I prepare artwork for corrugated display printing?
Supply artwork as vector files (Adobe Illustrator or PDF) with all fonts outlined, colors specified as Pantone or CMYK, and a minimum 1/8" bleed on all sides. Include die line as a separate layer. For flexo, limit colors to 2–4 when possible. For litho-lam, supply at 300 DPI. For digital UV, supply at 150–300 DPI.
What is spot UV on a corrugated display?
Spot UV is a finishing technique where a glossy UV coating is applied only to specific areas of the display (such as a logo or product image), while the rest of the surface has a matte or uncoated finish. This creates a high-contrast visual and tactile effect that draws attention to the coated elements.
