A brand designs a beautiful floor display. The graphics are perfect. The structure is solid. But when the display arrives at retail, the products roll together, labels get scratched, and shoppers cannot tell one variant from another. The problem was not the display — it was the missing inserts and dividers.

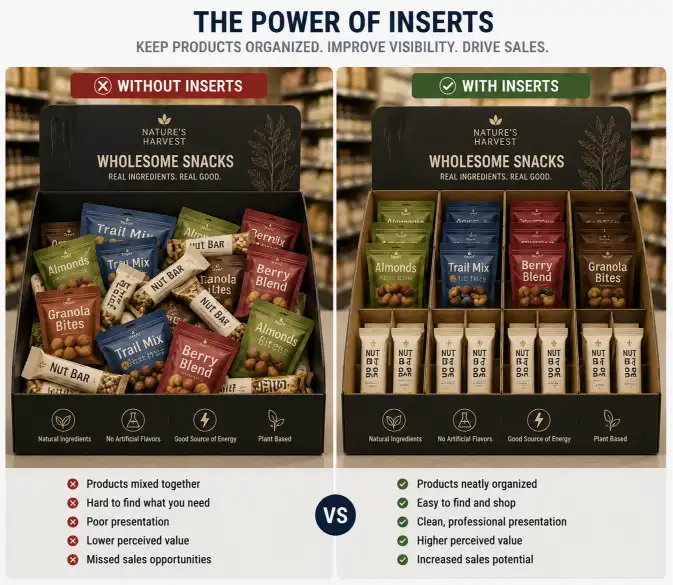

Display inserts and dividers are internal structural components that organize, separate, and protect products within a retail display. They prevent product-to-product contact, create individual compartments for each SKU, improve visual presentation, and make it easier for shoppers to find and select specific items. Without them, most multi-product displays become messy, confusing, and less effective within days of being stocked.
I have spent 16 years designing and manufacturing custom cardboard displays and their internal components. Inserts and dividers are often treated as an afterthought, but they are one of the most important elements of a successful display. In this guide, I will cover everything you need to know about display inserts and dividers — the different types, materials, structural considerations, costs, and how to choose the right system for your product.
What Are Display Inserts and Dividers?
Display inserts and dividers are internal components placed inside a retail display to create structure. They serve four primary functions:
| Function | Description | Why It Matters |
|---|---|---|
| Product separation | Keeps each product in its own space | Prevents damage, scuffing, and label tearing during transport and shopping |
| SKU organization | Divides the display into sections for different variants | Shoppers can find the specific flavor, size, or color they want |
| Stability | Prevents products from shifting during shipping | Reduces transit damage and keeps the display looking full and organized |
| Presentation | Creates a tidy, professional appearance | Well-organized displays sell more — shoppers trust organized brands |
Key Terminology
| Term | Definition |
|---|---|
| Divider | A flat panel that separates product rows or columns |
| Compartment | A fully enclosed cell that holds one product individually |
| Insert | A formed or cut shape that fits inside the display to hold products |
| Tray | A shallow container with low walls that holds a row of products |
| Cross-lock divider | A grid of interlocking panels that creates a matrix of compartments |
| Formed insert | A die-cut and folded shape that creates custom product cavities |
| Nest | A set of stacked trays or inserts designed to fit into one display |
| Layer pad | A flat sheet placed between product layers in a pallet display |

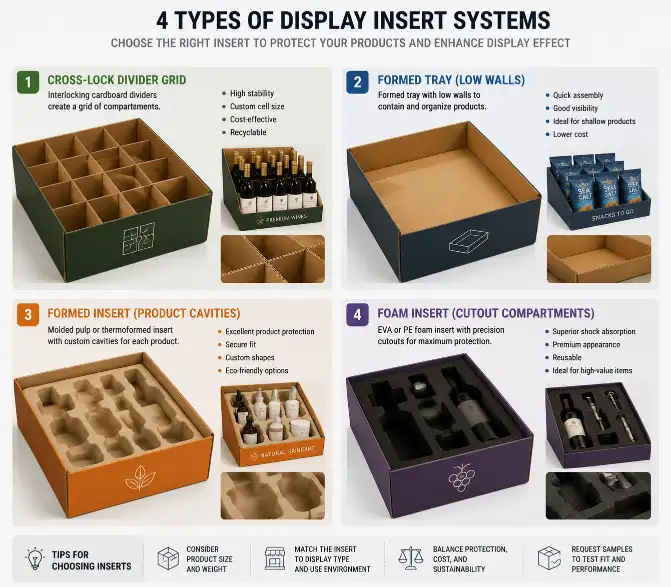

Types of Display Inserts and Dividers

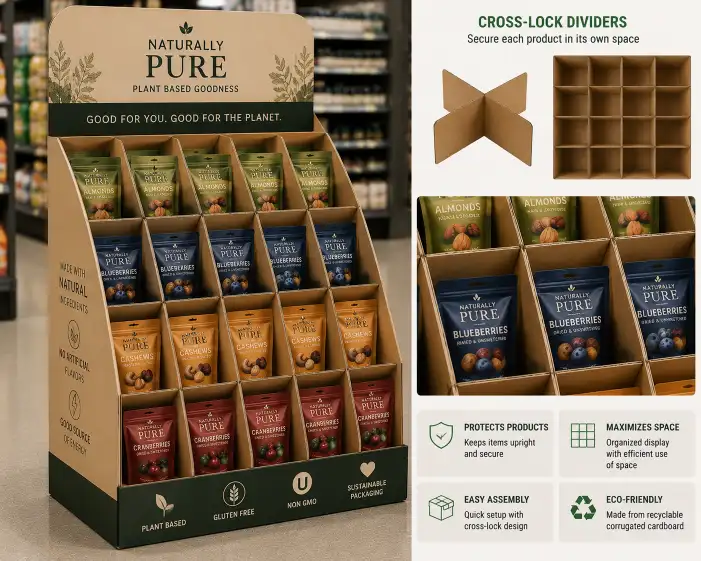

Cross-Lock Dividers
Cross-lock dividers are the most common type of internal display organization. They consist of panels with slots that interlock to create a grid of individual cells.
| Feature | Specification |
|---|---|
| Typical material | Single-wall B or E flute |
| Cell size | Custom — matches product width and length |
| Grid pattern | 2×3, 2×4, 3×4, 3×5, 4×6 (rows × columns) |
| Assembly | Manual — panels lock together by hand |
| Cost | Low |
| Best for | Boxed products, snack bags, small packaged goods |
Advantages: Low cost, collapsible for shipping, easy to customize, fully recyclable.
Limitations: Cannot hold very heavy products; cells do not have bottoms (products sit on the display shelf).
Formed Trays
A formed tray is a die-cut and folded cardboard shape that creates a shallow container with walls. Trays are used to hold rows of products and keep them from sliding.
| Feature | Specification |
|---|---|
| Typical material | Single-wall C flute or BC flute |
| Wall height | 1–4 inches |
| Shape options | Rectangle, square, custom |
| Assembly | Ships flat, folds into shape by hand |
| Cost | Low to medium |
| Best for | Bottles, cans, boxed items, multipacks |
Advantages: Prevents products from sliding forward, easy to load, can be printed.
Limitations: Does not provide individual compartments — only row separation.
Full-Height Dividers (Honeycomb)
Full-height dividers extend from the display base to the top of the product area, creating complete wall separation between product sections.
| Feature | Specification |
|---|---|
| Typical material | Single-wall or double-wall C flute |
| Height | Full product height (4–14") |
| Locking method | Slots or tabs into the display shelf and base |
| Assembly | Slides into display structure |
| Cost | Medium |
| Best for | Heavy products, bottles, fragile items |
Advantages: Complete product separation, adds structural strength to the display, prevents mixing.
Limitations: More expensive than cross-lock, takes up internal display space.
Formed Inserts (Custom Die-Cut)
A formed insert is a custom die-cut cardboard shape that creates exact cavities for each product. The insert is a single piece that holds products in specific positions.
| Feature | Specification |
|---|---|
| Typical material | Single-wall E flute or B flute |
| Cavity depth | 1–6 inches |
| Shape options | Custom — matches product contour |
| Assembly | Ships flat, folds into shape |
| Cost | Medium to high |
| Best for | Cosmetics, electronics, fragile items, premium products |
Advantages: Each product sits in its own cavity, excellent protection, premium presentation.
Limitations: Higher tooling cost ($200–$600 for the die), custom per product shape.
Foam Inserts
Foam inserts use polyethylene or polyurethane foam to create cushioned compartments for high-value or fragile products.
| Feature | Specification |
|---|---|
| Typical material | PE foam, PU foam, EVA foam |
| Cavity type | Die-cut or CNC-cut cavities |
| Thickness | 0.5–4 inches |
| Assembly | Drop into display or tray |
| Cost | Medium to high |
| Best for | Electronics, glass bottles, luxury goods |
Advantages: Maximum protection, soft surface does not scuff products, custom shapes.
Limitations: Not recyclable (foam), higher cost, larger shipping volume.
Layer Pads and Sheets
Layer pads are flat corrugated sheets placed between product layers in pallet displays. They distribute weight and prevent products from crushing each other.
| Feature | Specification |
|---|---|
| Typical material | Single-wall C flute or BC flute |
| Thickness | 1/8–1/4 inch |
| Size | Matches pallet footprint (48" × 40" typical) |
| Assembly | Drop in place between layers |
| Cost | Very low |
| Best for | Pallet displays, stacked product layers |
Advantages: Very low cost, prevents crush damage, can be printed with branding.
Limitations: No individual product organization.
Materials for Inserts and Dividers

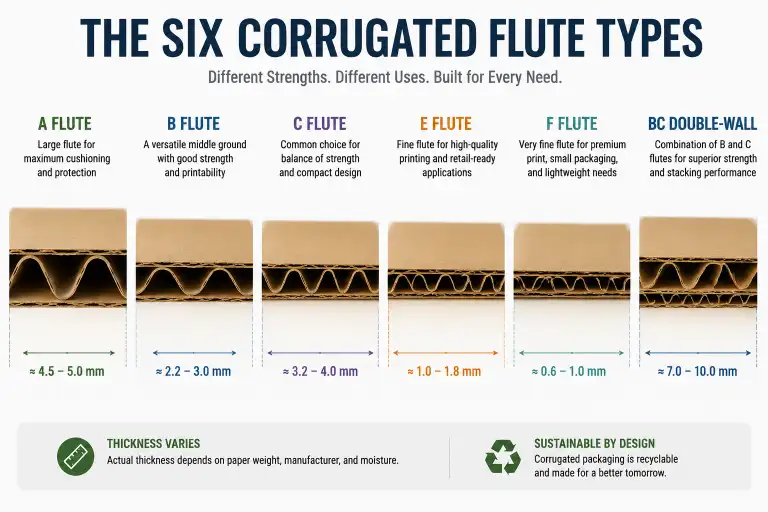

Corrugated Grades
| Grade | Flute | Best For | Stiffness | Cost Index |
|---|---|---|---|---|
| Thin insert board | E flute | Small compartments, cosmetic inserts | Medium | 1.0× |
| Standard insert board | B flute | Cross-lock dividers, trays | Medium | 1.1× |
| Heavy insert board | C flute | Heavy products, full-height dividers | High | 1.3× |
| Double-wall | BC flute | Very heavy products, structural support | Very high | 1.8× |
| Chipboard (solid) | N/A | Premium inserts, smooth surface | High | 2.0× |
Alternative Materials
| Material | Best For | Pros | Cons |
|---|---|---|---|
| Foam (PE/PU/EVA) | Fragile products, electronics | Maximum cushioning, custom cavities | Not recyclable, higher cost |
| Molded pulp | Eco-friendly packaging, custom shapes | 100% recyclable, biodegradable | Higher tooling cost, limited precision |
| PET plastic | Clear visibility, durable | Transparent, strong, reusable | Not recyclable in all regions |
| Paperboard (solid) | Premium presentation, printing | Smooth surface, excellent print quality | Higher cost than corrugated |
| Recycled fiber board | Eco-friendly projects | Low cost, recyclable | Lower strength, less durable |
When to Use Each Insert Type
Selection Guide by Product Category
| Product Type | Recommended Insert System | Why |
|---|---|---|
| Snack bags (chips, candy) | Cross-lock divider grid | Easy to fill, keeps bags upright, low cost |
| Boxed items (cereal, supplements) | Formed tray or cross-lock divider | Boxes stack neatly in organized rows |

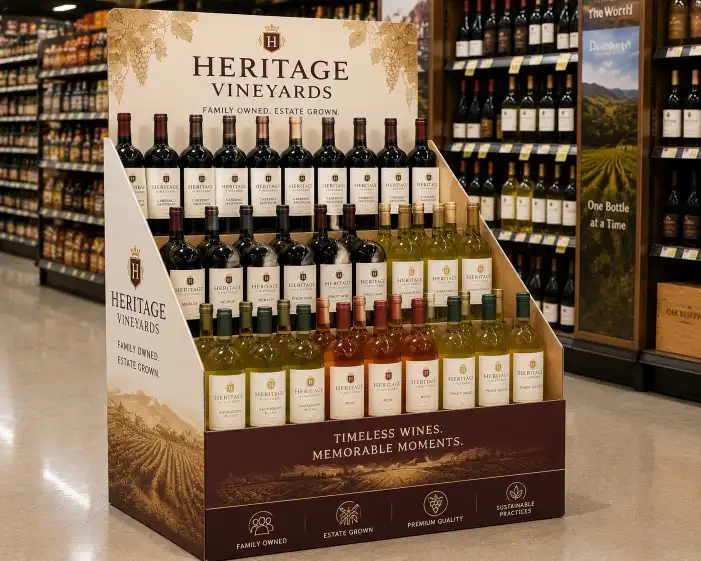

| Glass bottles (wine, spirits) | Full-height dividers or foam insert | Prevents glass-to-glass contact, critical for safety |
| Cans (beverages, food) | Formed tray or layer pad | Cans stack well with simple separation |
| Cosmetics (lipstick, foundation) | Formed insert with custom cavities | Each product sits in its own cavity — premium presentation |
| Electronics (earphones, chargers) | Formed insert or foam insert | Protection from movement during shipping |
| Small hardware (screws, bits) | Cross-lock divider with small cells | Keeps small items separated and visible |
| Premium spirits | Foam insert with individual cutouts | Highest protection for high-value products |
| Subscription boxes | Formed insert with product cutouts | Curated presentation, easy assembly |
| Bulk pallet display | Layer pads between product layers | Prevents crushing, distributes weight |
Decision Matrix
| If You Need | Choose | Avoid |
|---|---|---|
| Lowest cost per unit | Cross-lock divider | Foam insert or formed insert |
| Individual presentation per product | Formed insert | Layer pad |
| Maximum protection during shipping | Foam insert | Cross-lock divider |
| Eco-friendly / fully recyclable | Cross-lock divider or paperboard insert | Foam insert |
| Quick assembly at retail | Formed tray (one piece) | Cross-lock divider (multiple pieces) |
| Heavy products (5+ lbs each) | Full-height divider or foam | Cross-lock divider |
| Clear product visibility | Formed tray (low walls) | Full-height divider |
Structural Design for Inserts and Dividers
Sizing Rules
| Rule | Why | How to Apply |
|---|---|---|
| Cell size = product size + 2–4mm tolerance | Products must fit without force but not rattle | Measure product at widest point, add 2–4mm per side |
| Divider height = product height or product height – 20% | Full-height dividers prevent mixing; shorter dividers allow easier access | Full height for shipping protection, 80% height for retail access |
| Tray wall height = 25–40% of product height | High enough to prevent sliding, low enough for visibility | Shorter for boxed items, taller for round products |
| Cross-lock slot depth = half the panel width | Creates a stable, self-locking grid | Slot must extend to the center of the panel |
| Shelf overhang: inserts should sit 5–10mm inside shelf edge | Prevents inserts from catching on adjacent shelves | Cut inserts 10–20mm smaller than the shelf footprint |
Locking Mechanisms
| Lock Type | How It Works | Best For |
|---|---|---|
| Cross-lock slot | Two panels with center slots interlock to form a grid | Cross-lock dividers |
| Tab-and-slot | Tabs on the insert fit into slots on the display wall | Securing inserts to the display |
| Friction fit | Insert is cut slightly larger than the opening, held by pressure | Simple retention, no glue needed |
| Glue tab | Small flap with adhesive attaches the insert to the display | Permanent attachment |
| Snap-lock | Flexible tab snaps into a receiving slot | Removable inserts, easy assembly |
Common Design Mistakes
| Mistake | Result | Fix |
|---|---|---|
| Cell too tight | Product difficult to insert and remove | Add 2–4mm tolerance per side |
| Cell too loose | Product rattles during shipping, labels scuff | Reduce tolerance to 1–2mm per side |
| Divider too short | Products fall over the top of dividers | Extend dividers to at least 80% of product height |
| Tray walls too low | Products slide out during transport | Increase wall height to 30–40% of product height |
| No locking mechanism | Insert shifts during shipping | Add tab-and-slot or friction fit to secure insert |
| Material too thin | Dividers bow or collapse under product weight | Upgrade to thicker flute or double-wall grade |
For more on structural design, see our display fixture structural design guide.
Printing and Finishing for Inserts
When to Print Inserts
| Situation | Print Recommendation | Why |
|---|---|---|
| Products are visible through clear packaging | No printing needed on inserts | Insert is not seen by the shopper |
| Products are removed partially, empty cells visible | Print inserts with brand colors or pattern | Empty cells look intentional, not depleted |
| Premium display, gift sets | Full-color printed insert | Insert is part of the unboxing experience |
| Multi-brand display | Printed divider with brand names per section | Helps shoppers identify sections |
| Eco-friendly brand | Unprinted kraft insert | Natural look reinforces sustainability message |
Printing Options
| Method | Quality | Cost | Best For |
|---|---|---|---|
| Flexographic | Basic — solid colors | Low | Simple dividers, uncoated boards |
| Litho laminated | High — photo quality | Medium | Premium inserts, gift sets |
| Digital | Good — short run | Higher per unit at low volume | Prototypes, small batches |
| No print (kraft) | Natural | Lowest | Eco-friendly, hidden inserts |
Finishing Options
| Finish | Protection | Cost Premium | When to Use |
|---|---|---|---|
| None | Low | — | Inserts hidden from shopper view |
| Aqueous coating | Medium | +5–10% | Standard protection, visible inserts |
| Gloss lamination | High | +15–25% | Premium inserts, gift sets, high-traffic displays |
Cost-saving tip: Inserts that are not visible to shoppers (covered by products) do not need printing or coating. Use unprinted kraft board for hidden dividers and save 30–50% on insert cost.
Cost of Display Inserts and Dividers
Cost Estimates by Type
| Insert Type | Cost per Insert (1,000 qty) | Cost per Insert (5,000 qty) | Cost per Display (typical) |
|---|---|---|---|
| Cross-lock divider set (12 cells) | $0.08–$0.20 | $0.05–$0.12 | $0.20–$1.00 |
| Formed tray (single) | $0.10–$0.30 | $0.06–$0.18 | $0.20–$0.80 |
| Full-height divider (per panel) | $0.05–$0.15 | $0.03–$0.08 | $0.15–$0.60 |
| Formed insert with cavities (custom die) | $0.25–$0.80 | $0.15–$0.50 | $0.25–$0.80 |
| Foam insert (die-cut cavities) | $0.50–$2.00 | $0.30–$1.20 | $0.50–$2.00 |
| Layer pad (48" × 40") | $0.15–$0.40 | $0.08–$0.25 | $0.15–$0.40 per layer |
| Chipboard insert (premium, printed) | $0.30–$0.90 | $0.18–$0.55 | $0.30–$0.90 |
Cost Factors
| Factor | Impact | How to Control |
|---|---|---|
| Material grade | +30–80% for double-wall vs single-wall | Use single-wall for dividers that do not bear weight |
| Custom die tooling | $200–$800 one-time cost | Amortize over large quantities; use standard shapes for short runs |
| Printing and finishing | +30–60% with full printing | Skip printing on hidden dividers |
| Cell count per display | +10–30% more material per additional cell | Minimize cells while maintaining product separation |
| Assembly complexity | +5–20% for multi-piece systems | Use one-piece formed inserts where possible |
| Quantity | 40–60% savings at 5,000+ vs 500 | Higher volume = significantly lower per-unit cost |
When Inserts Add the Most Value
| Investment | Typical Cost | ROI |
|---|---|---|
| Cross-lock dividers for a floor display | +$0.30–$1.00 per display | Products stay organized — higher sales conversion |
| Formed insert for a cosmetic display | +$0.25–$0.80 per display | Premium presentation — justifies higher price point |
| Foam insert for fragile electronics | +$0.50–$2.00 per display | Reduced breakage — saves 5–10× the insert cost in damage |
| Printed insert for gift set | +$0.20–$0.60 per display | Unboxing experience — social media sharing |
| Layer pads for pallet display | +$0.15–$0.40 per layer | Prevents product crushing — reduces write-offs |
For more on display cost planning, see our custom cardboard display cost guide.
FAQ
What are display inserts and dividers?
Display inserts and dividers are internal components placed inside retail displays to organize, separate, and protect products. Dividers are flat panels that separate rows or columns. Inserts are formed shapes that create individual compartments for each product. Together they keep products from mixing, protect labels from scuffing, and create a professional presentation.
What is the difference between a divider and an insert?
A divider is a flat panel that separates product sections — it creates rows or columns. An insert is a formed piece that holds products in individual cavities. Dividers work well for boxed and bagged products. Inserts work better for irregular shapes, fragile items, or premium presentation where each product needs its own space.
What is the best type of insert for my product?
Cross-lock dividers are the best choice for most boxed, bagged, or uniformly shaped products — they are low cost, easy to customize, and fully recyclable. Formed inserts are better for irregularly shaped products like cosmetics or electronics. Foam inserts are best for fragile items like glass bottles or electronics that need cushioning during shipping.
How much do display inserts cost?
A cross-lock divider set costs $0.08–$0.20 per insert at 1,000 quantity. Formed inserts cost $0.25–$0.80 each at the same quantity. Foam inserts cost $0.50–$2.00 each. The insert cost is typically 10–30% of the total display cost. Higher quantities reduce the per-unit cost by 40–60%.
Do display inserts need to be printed?
No, in most cases inserts do not need printing. If the insert is hidden behind products, use unprinted kraft board — it costs 30–50% less than printed board. Only print inserts when they are visible after products are removed, or when the insert is part of the premium presentation (gift sets, cosmetics).
Can inserts be recycled?
Yes — corrugated cardboard and paperboard inserts are fully recyclable. Cross-lock dividers, formed trays, and paperboard inserts can all go into standard recycling. Foam inserts are not recyclable through standard programs. If sustainability is a priority, choose corrugated inserts over foam.
How do I measure for display inserts?
Measure your product at its widest point in each dimension. Add 2–4mm of tolerance per side for a comfortable fit. The insert cell should hold the product without force but not allow it to rattle. For cross-lock dividers, the cell size = product width + 4mm × product length + 4mm.
What material is best for dividers?
Single-wall B flute or C flute corrugated is the standard for most dividers. B flute is thinner and works well for small cells. C flute is stronger and better for heavier products. For very heavy products, use double-wall corrugated dividers to prevent bowing under weight.
Do inserts add to the display cost significantly?
Inserts typically add 10–30% to the total display cost, but they add significantly more value in product protection and sales performance. A $0.50 insert can prevent $5–$10 in product damage per display during shipping and handling.
Can I get samples of inserts before ordering?
Yes — we recommend ordering a structural sample of your display with inserts included. The sample confirms that the insert fits the display, the product fits the insert, and the assembly process is practical. Insert tooling cost is typically $200–$600 for custom die-cut shapes, which is included in the sample cost.
