Beverage products are among the heaviest and most demanding items displayed at Costco. A single Costco beverage display can hold hundreds of pounds of bottled water, soft drinks, energy drinks, or coffee multipacks. The structural requirements for beverage displays are stricter than for most other product categories.
Water weight, bottle shape, moisture exposure, and high customer turnover all affect how a beverage pallet display must be designed. Getting it wrong means collapsed trays, damaged products, and rejected shipments.
This guide covers everything drink brands need to know about designing Costco-compliant pallet displays for beverages.

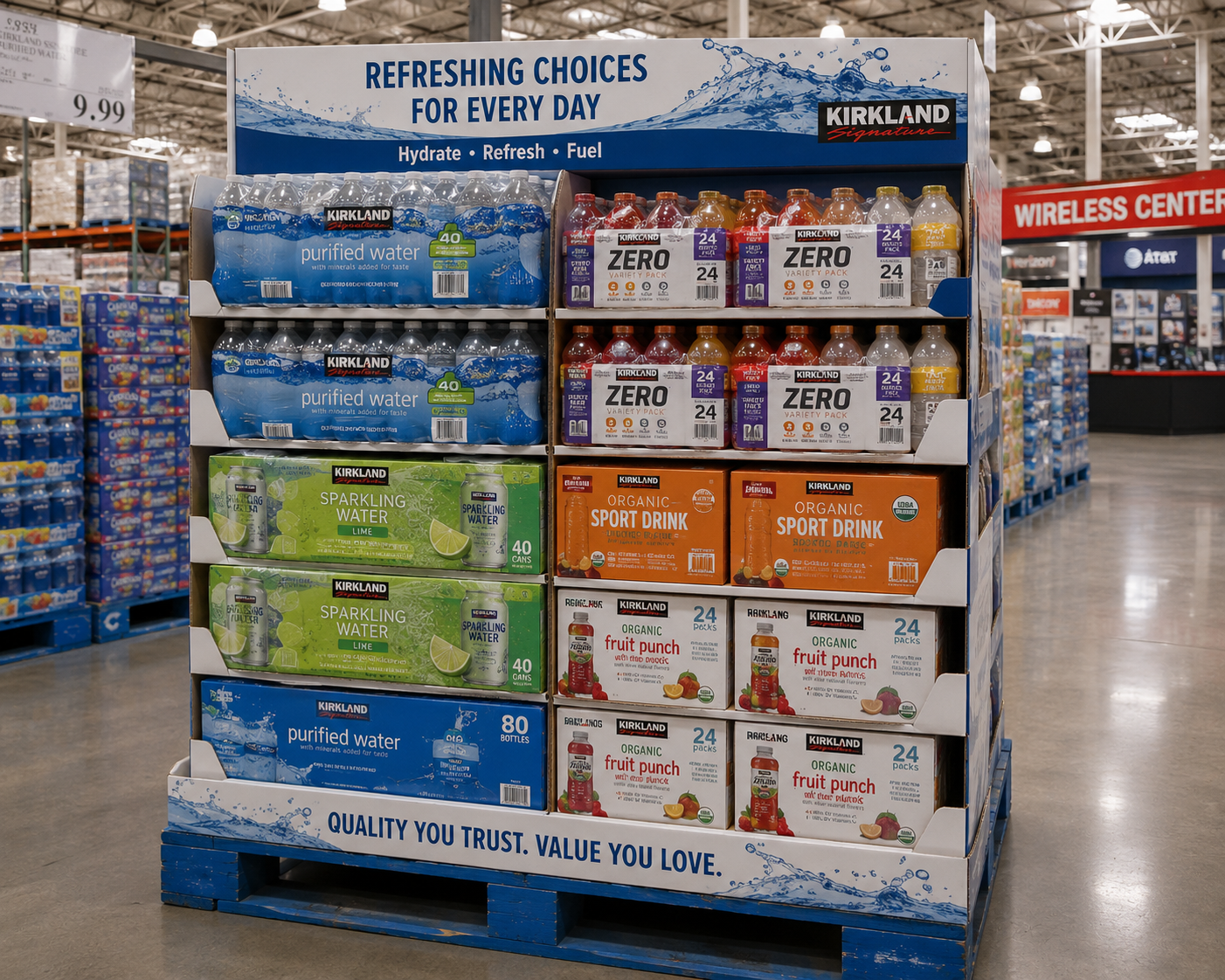

Why Beverage Displays Need Special Design at Costco
Beverage displays at Costco face challenges that other product categories do not:
- Extreme weight — Water and drinks are dense. A single pallet display can exceed 1,500 lbs
- Moisture exposure — Condensation from chilled products and leak risk during transit
- Smooth bottle surfaces — Bottles and cans can slide against each other, shifting the load
- High turnover — Beverages sell fast at Costco. Displays must hold up to frequent restocking
- Multi-pack formats — Bottled water, soda cans, and juice boxes each need different tray designs
For an overview of Costco display requirements, read our Costco Pallet Display Requirements guide. For a broader introduction to Costco display formats, see our guide to Costco-style club store displays.
Weight and Structural Requirements for Beverage Displays
Beverage displays are the heaviest type of Costco pallet display. The structural design must prioritize strength at every level.
Weight Guidelines by Beverage Type
| Beverage Type | Typical Weight per Display | Recommended Board Grade |
|---|---|---|
| Bottled water (500 ml × 24–40 packs) | 1,200–2,500 lbs | BC-flute double-wall, ECT 48+ |
| Soft drinks (cans, 12–36 packs) | 800–1,500 lbs | C-flute or BC-flute, ECT 38+ |
| Energy drinks (cans, 12–24 packs) | 600–1,000 lbs | C-flute, ECT 32+ |
| Juice (bottles, multi-packs) | 800–1,200 lbs | C-flute or BC-flute |
| Coffee (bags, pods, multi-packs) | 400–800 lbs | B-flute or C-flute, ECT 32 |
| Plant-based milk (cartons) | 600–900 lbs | C-flute, ECT 32+ |
Critical Structural Rules for Beverage Displays
- Double-wall board for bottom tiers — The bottom 2–3 layers must use BC-flute or equivalent double-wall
- Heaviest products on the lowest trays — Never place bottled water above the middle tier
- Layer pads between every tier — Corrugated sheets distribute weight and prevent tray collapse
- Edge reinforcement — All load-bearing edges should be reinforced with additional board layers
- Pallet base support — The display base must distribute weight evenly across the full GMA pallet surface
ECT Requirements for Beverage Displays
| Display Section | Minimum ECT | Board Type |
|---|---|---|
| Bottom tier trays | 48–55 lbs/in | BC-flute double-wall |
| Middle tier trays | 38–44 lbs/in | C-flute or BC-flute |
| Top tier trays | 32–38 lbs/in | B-flute or C-flute |
| Pallet base structure | 55+ lbs/in | BC-flute double-wall |
For board grade specifications and structural testing, see our PRODUCTION page.

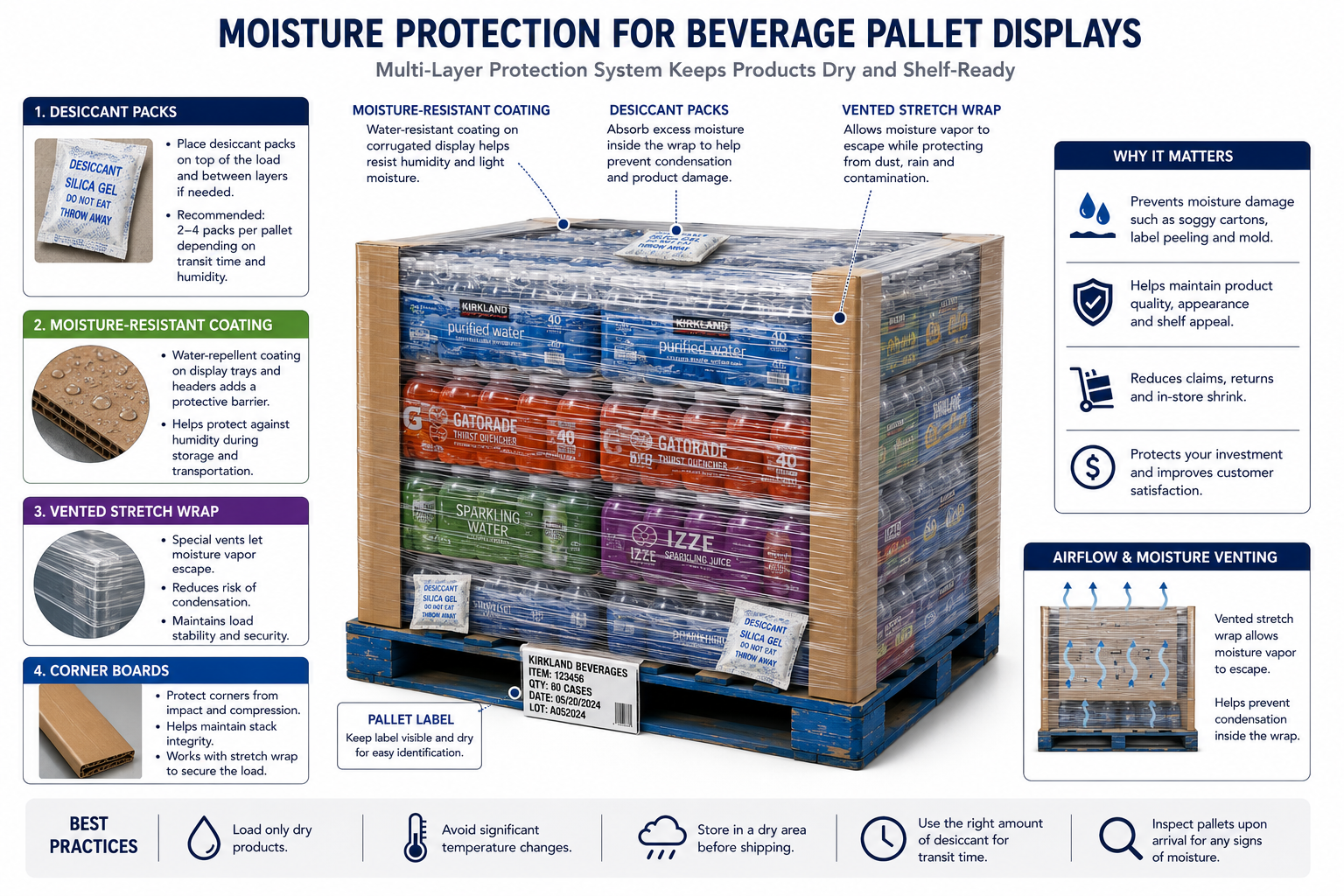

Moisture Protection for Beverage Pallet Displays
Moisture is the biggest threat to a Costco beverage display. Corrugated board absorbs water, losing up to 80% of its structural strength when wet. Beverage displays face two moisture sources: condensation from chilled products and leaks during transit.
Moisture Protection Methods
| Method | Application | Effectiveness |
|---|---|---|
| Moisture-resistant adhesive | All glued joints | Prevents glue failure in humid conditions |
| Aqueous coating (water-resistant grade) | Surface of all trays | Adds moisture barrier |
| Stretch wrap with moisture barrier | Outer wrap of pallet | Protects during sea freight |
| Desiccant packs | Inside sealed containers | Absorbs humidity during transit |
| Corrugated with wet-strength additive | Bottom tier trays | Extended protection against leaks |
| Ventilation gaps | Between layers | Reduces condensation buildup |
Best Practices
- Use moisture-resistant adhesive on ALL glued joints — Standard PVA adhesive can fail in humid environments
- Apply aqueous coating with water-resistant properties on all tray surfaces that contact bottles
- Include desiccant packs in sealed containers for sea freight routes exceeding 15 days
- Test with actual product — Place chilled bottles on the display tray and check for moisture damage after 24 hours
For packing and moisture protection specifications, see our SHIPPING page.
Tray Design for Different Beverage Formats
Different beverage packaging requires different tray configurations. The tray must hold the product securely during transit while allowing easy removal by customers.
Bottled Beverages
| Bottle Type | Recommended Tray Design | Notes |
|---|---|---|
| Water bottles (500 ml–1.5 L) | Divided tray with individual slots | Prevents bottles from shifting |
| Soda bottles (2 L) | Open tray with low walls | Bottles stable, easy to grab |
| Glass bottles (juice, beer) | Compartmentalized reinforced tray | Prevents glass-to-glass contact |
| Juice cartons (1 L shelf-stable) | Standard open tray | Cartons stack well |
Can Beverages
Can products are more stable than bottles but still require careful tray design:
- 12-pack cans — Standard tray with low walls. Packs are self-supporting
- 24-pack cans — Reinforced tray. Heavier weight requires double-wall board
- Loose cans (single-serve) — Divided tray with compartment walls. Prevents cans from rolling
Coffee and Tea Beverages
- Bottled coffee drinks — Similar to bottled beverages. Use divided trays
- Coffee pods (K-cup, Nespresso) — Shallow tray with boxed configuration. Lightweight
- Tea multipacks — Standard tray. Boxes are uniform and stable
Beverage Categories and Display Requirements
Bottled Water
Bottled water is the heaviest and most common beverage category at Costco. A single pallet display of 500 ml water bottles can weigh over 2,000 lbs.
- Must use: BC-flute double-wall board, ECT 48+
- Tray type: Divided trays with individual bottle slots
- Tier limit: Maximum 3–4 tiers due to weight
- Partial sell-through: Critical — test stability at 30% depletion
Soft Drinks
Soda, sparkling water, and juice drinks are typically sold in can or bottle multipacks.
- Must use: C-flute or BC-flute for bottom tiers (ECT 38+), B-flute for top tiers (ECT 32)
- Tray type: Standard open tray for multipacks. Divided tray for loose cans
- Moisture: Moderate risk. Use moisture-resistant adhesive
Energy and Sports Drinks
Energy drinks are a fast-growing category at Costco. Cans are the most common format.
- Must use: C-flute board (ECT 32+). Heavier loads need BC-flute
- Tray type: Divided tray for loose cans. Open tray for multipacks
- Weight: Moderate (600–1,000 lbs per display)
Coffee
Coffee products — bagged coffee, pods, and ready-to-drink bottles — each have different needs.
- Bagged coffee: Narrow slot trays. Pouches need support to stay upright
- Coffee pods: Shallow, boxed trays. Lightweight
- Ready-to-drink coffee: Similar to bottled beverages
For a complete range of club store display options, see our COSTCO DISPLAYS page.

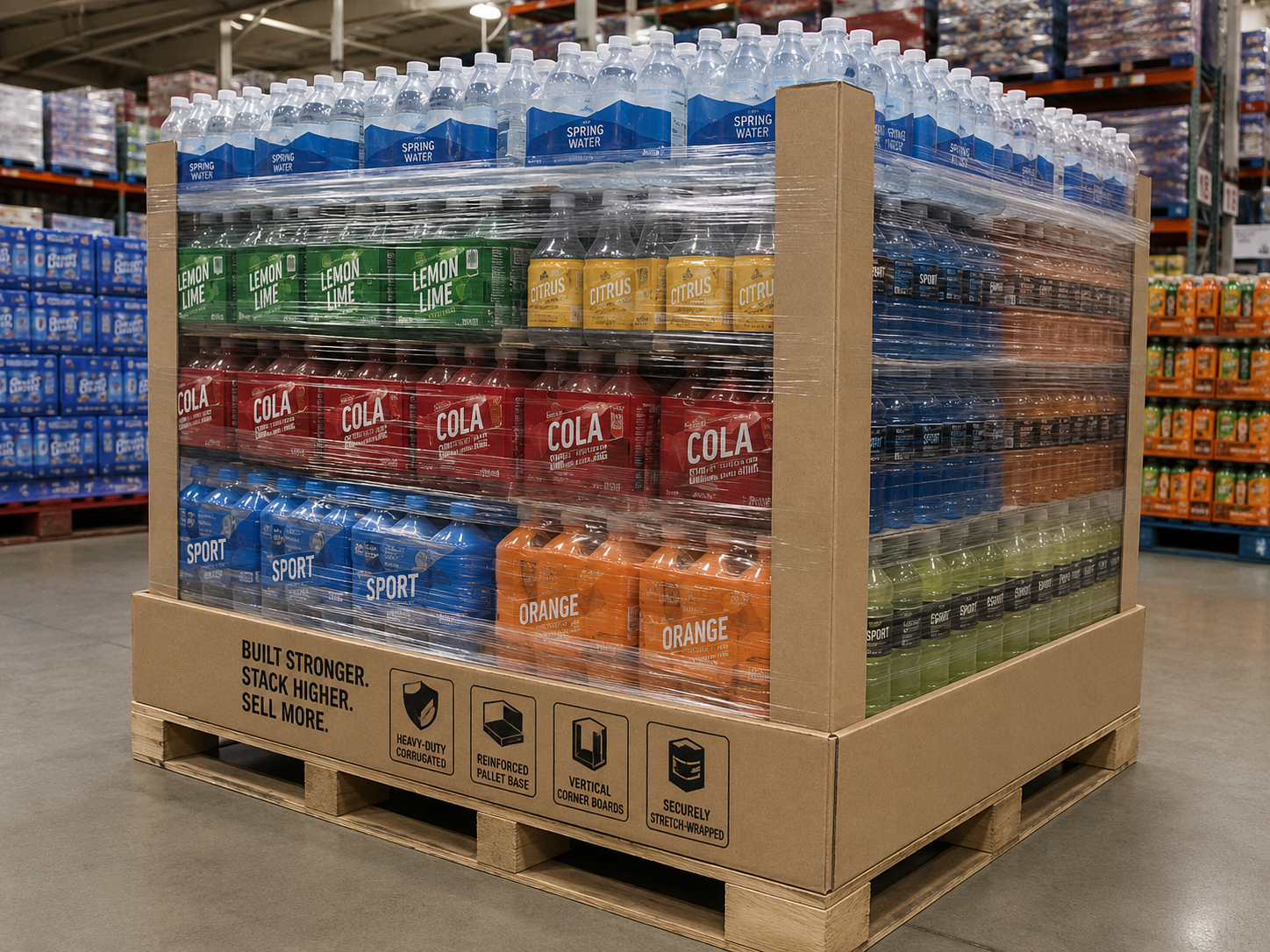

Pallet Base and Forklift Considerations for Heavy Loads
Beverage displays are heavy. The pallet base must be designed to handle the load without bowing or collapsing.
Pallet Base Requirements for Heavy Beverage Displays
- Standard GMA pallet — 48 × 40 inches, must be in good condition with no broken boards
- Four-way forklift entry — 3.5-inch clearance on all sides
- Pallet weight capacity — Must support the total display weight (up to 2,500 lbs)
- Base reinforcement — For displays exceeding 1,500 lbs, consider additional corrugated base supports
- Corner boards — L-shaped protectors on all four pallet corners. Essential for heavy loads
- Stretch wrap — Minimum 5 layers for beverage displays. Apply additional wrap at the base
Stacking During Transit
Beverage pallet displays are often stacked 2–3 high during shipping. The bottom display must support the weight of the units above it. For heavy beverage displays, stacking may be limited to 2 high. Confirm with your factory based on total weight per unit.
For palletizing specifications, see our PALLET DISPLAY product page.
Transit Testing for Beverage Displays
Beverage displays must pass transit testing before they are approved for Costco. The tests simulate the conditions the display will face during truck and container shipping.
Required Tests
| Test | Purpose | Passing Criteria |
|---|---|---|
| Compression test (ECT) | Measures stacking strength | Min 48 lbs/in for double-wall |
| Vibration test | Simulates truck transit | No structural failure, no product damage |
| Drop test | Simulates handling | No damage from 6–12 inch drops |
| Tilt test | Measures stability | Display must not tip at 15–20 degrees |
| Moisture resistance test | Simulates humid conditions | Board retains minimum 70% strength |
Beverage-Specific Testing
- Leak test — Place filled beverage containers in the display and tilt to 15 degrees. Check for leaks
- Condensation test — Place chilled products (40°F / 4°C) in the display for 24 hours. Check tray integrity
- Slide test — Simulate vibration with smooth-surface bottles to check if products shift out of position
For detailed testing procedures, see our SAMPLING page.
Buyer Checklist for Costco Beverage Displays
| Check Item | Status | Notes |
|---|---|---|
| GMA pallet 48×40 in | ☐ | Confirm exact dimensions |
| Board grade matches weight | ☐ | BC-flute for heavy loads |
| Moisture-resistant adhesive | ☐ | All glued joints |
| Aqueous coating (water-resistant) | ☐ | All tray surfaces |
| Tray type matches bottle/can format | ☐ | Divided or open tray |
| Bottom tier double-wall | ☐ | BC-flute minimum |
| Layer pads between tiers | ☐ | Corrugated sheets |
| Corner boards and edge protectors | ☐ | All four corners |
| Stretch wrap 5+ layers | ☐ | Extra at base |
| ECT test report | ☐ | 48+ for double-wall |
| Vibration test passed | ☐ | No product shift |
| Leak and condensation test | ☐ | 24-hour chilled test |
| Sample approved with real product | ☐ | Test with filled beverage containers |
Conclusion
Designing a Costco beverage display requires serious structural planning. The weight of bottled water and drinks demands double-wall board, reinforced trays, and moisture protection that other product categories do not need. The most important rule: never underestimate the weight. A display that works for snacks will fail for beverages.
For beverage brands entering Costco, start by confirming the board grade and ECT rating for your specific product weight, then test with real product — filled bottles, chilled, in the actual tray configuration.
If you are planning a beverage display project for Costco, review the COSTCO DISPLAYS product page and the Costco Pallet Display Requirements guide for complete specifications. For weight and structural guidance, see our PALLET DISPLAY page.
FAQ
What is a Costco beverage display?
A Costco beverage display is a reinforced corrugated pallet display designed to hold bottled water, soft drinks, energy drinks, coffee, and other beverage products at Costco warehouse clubs.
What board grade is needed for Costco beverage displays?
For heavy beverages like bottled water, use BC-flute double-wall board with ECT 48+ lbs/inch. For lighter beverages like coffee pods, C-flute with ECT 32+ may be sufficient.
How do I protect beverage displays from moisture?
Use moisture-resistant adhesive on all glued joints, apply water-resistant aqueous coating, include desiccant packs for sea freight, and use stretch wrap with moisture barrier properties.
What tray design works best for bottled beverages?
Divided trays with individual bottle slots prevent bottles from shifting during transit. For can multipacks, standard open trays with low walls work well.
How much weight can a Costco beverage display hold?
A full-size Costco beverage display can hold up to 2,500 lbs, depending on board grade and tray configuration. Bottled water displays typically weigh 1,200–2,500 lbs.
Do beverage displays need special transit testing?
Yes. In addition to standard ECT, vibration, drop, and tilt tests, beverage displays should undergo leak testing, condensation testing, and slide testing for smooth-surface bottles.
What is the best tray configuration for canned beverages?
For multipacks, use standard open trays. For loose single-serve cans, use divided trays with compartment walls to prevent cans from rolling and shifting.
