There are two common materials used for retail displays — paperboard (often called cardboard) and corrugated board. For a buyer sourcing a display, the first question is often which material to use. But these materials are not interchangeable. Paperboard is thin, rigid, and best for small lightweight displays. Corrugated board has a fluted inner layer that provides strength, durability, and load-bearing capacity for larger displays. Some products need the print quality of paperboard, while others need the structural strength of corrugated. So when you are choosing between cardboard and corrugated for your retail display, how do you know which material is right for your product?
Paperboard and corrugated board are both paper-based materials, but they are fundamentally different in structure, strength, and application. Paperboard — what most people call "cardboard" — is a single thick sheet of paper, typically 0.3–1.5 mm thick, similar to a greeting card or cereal box. Corrugated board is a three-layer structure: two flat linerboards with a fluted (wavy) inner layer sandwiched between them, typically 2–8 mm thick, depending on the flute type. At Leader Display, I have spent 16 years working with both materials, and the most common mistake I see is buyers using paperboard for a display that needs corrugated strength — or paying for corrugated when paperboard would suffice. This guide covers the structural differences, the cost implications, and the decision framework for choosing the right material for your display.
What Is Paperboard (Cardboard)?
Paperboard, also called solid board or paper-based board, is a single-layer sheet of paper-based material. It is the material used for cereal boxes, shoe boxes, greeting cards, and folding cartons. In the display industry, paperboard is used for small, lightweight displays where structural strength is not the primary requirement.
| Property | Paperboard Specification |
|---|---|
| Structure | Single solid layer |
| Thickness | 0.3–1.5 mm (varies by grade) |
| Weight (GSM) | 200–600 gsm |
| Common grades | SBS (Solid Bleached Sulfate), CCNB (Clay Coated News Back), kraft |
| Bending stiffness | Low — folds easily but does not hold heavy loads |
| Surface | Smooth, suitable for high-quality printing |
| Typical display types | Counter displays, PDQ trays, small dump bins, cosmetic displays |
Paperboard Grades Used in Displays
| Grade | Surface | Best For | Cost Index | Typical Use |
|---|---|---|---|---|
| SBS (Solid Bleached Sulfate) | White, smooth, coated | Premium printing, cosmetics, food | 1.0× (baseline) | High-end counter displays |
| CCNB (Clay Coated News Back) | White coated one side, gray back | Standard printing, mass-market | 0.7× | PDQ trays, small displays |
| Kraft paperboard | Brown, uncoated | Eco-friendly, natural look | 0.6× | Sustainable packaging, kraft displays |
| Recycled paperboard | Gray throughout | Budget-friendly, non-food | 0.5× | Low-cost displays, single-use |
What Is Corrugated Board?
Corrugated board is a multi-layer structure consisting of one or more fluted layers sandwiched between flat linerboards. The fluted layer provides strength, cushioning, and load-bearing capacity that paperboard cannot match.
| Property | Corrugated Board Specification |
|---|---|
| Structure | Multi-layer (liner + flute + liner) |
| Thickness | 1.5–8.0 mm (varies by flute type) |
| Common flute types | A, B, C, E, F, BC (double-wall) |
| ECT range | 23–61+ (edge crush test rating) |
| Bending stiffness | High — holds heavy loads without sagging |
| Surface | Textured (corrugated texture visible on surface) |
| Typical display types | Floor displays, pallet displays, dump bins, sidekicks |
Flute Types Comparison
| Flute Type | Thickness | Flutes per Linear Foot | Strength | Print Quality | Best For |
|---|---|---|---|---|---|
| A flute | 4.5–5.0 mm | 33–36 | Highest | Poor | Heavy-duty shipping, structural support |
| B flute | 2.5–3.0 mm | 47–53 | Medium | Good | Cans, bottles, medium displays |
| C flute | 3.5–4.0 mm | 39–43 | High | Fair | General-purpose, most common display flute |
| E flute | 1.5–2.0 mm | 90–96 | Low | Very good | Premium displays, litho-laminated |
| F flute | 0.8–1.2 mm | 125–130 | Very low | Excellent | Small boxes, cosmetic packaging |
| BC flute | 6.0–7.0 mm | Double-wall | Very high | Poor | Heavy-duty displays, pallet displays |
For a detailed explanation of flute types, ECT ratings, and material grades, see our display materials guide.

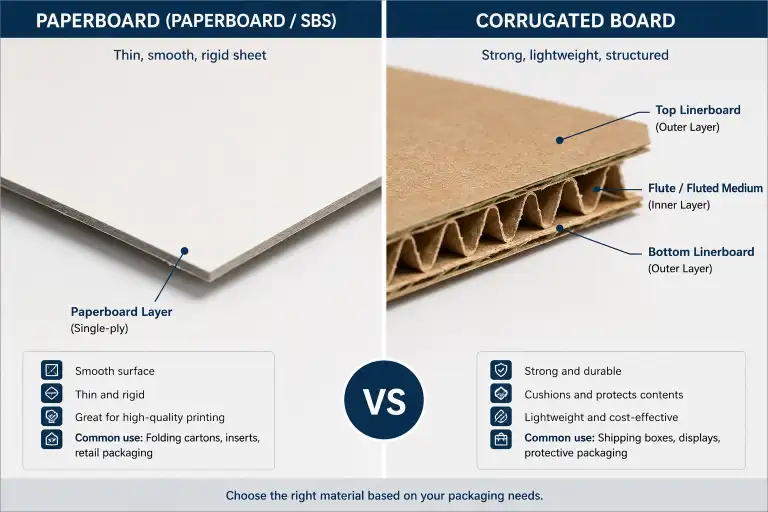

Paperboard vs Corrugated: Side-by-Side Comparison
Structural Properties
| Property | Paperboard | Corrugated (C flute) | Winner |
|---|---|---|---|
| Thickness | 0.3–1.5 mm | 3.5–4.0 mm | Corrugated |
| Weight per sq ft | 0.02–0.05 lbs | 0.08–0.12 lbs | Paperboard (lighter) |
| Load capacity (shelf) | 1–5 lbs per sq ft | 15–30 lbs per sq ft | Corrugated |
| Edge crush strength | 10–15 lbs per inch | 26–32 lbs per inch (ECT 26–32) | Corrugated |
| Puncture resistance | Low | Medium to high | Corrugated |
| Foldability | Clean, crisp folds | Bulkier folds, may crack | Paperboard |
| Moisture resistance | Low | Low to medium (with coating) | Similar |

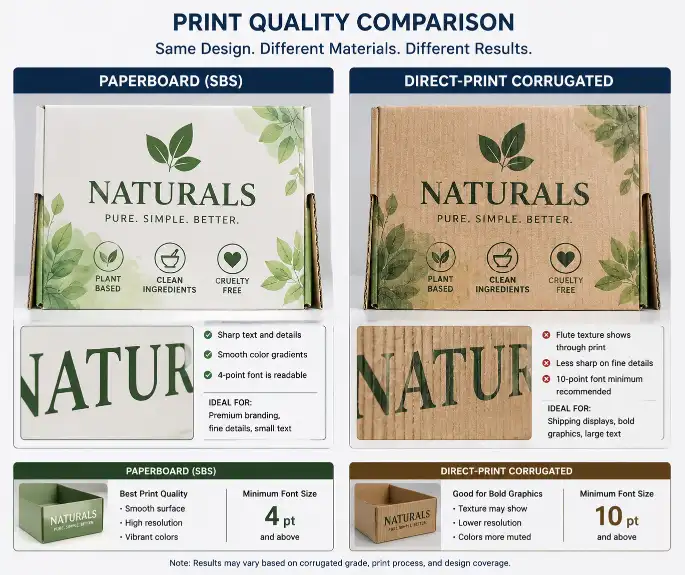

Print Quality
| Property | Paperboard | Corrugated (litho laminated) | Corrugated (direct flexo) |
|---|---|---|---|
| Surface smoothness | Excellent | Good (after lamination) | Poor to fair |
| Color reproduction | 4-color process, photo quality | 4-color process, near photo quality | 1–3 colors, limited |
| Minimum font size | 4–6 pt | 6–8 pt | 10–12 pt |
| Image resolution | Up to 300 DPI | Up to 200 DPI | 85–120 DPI |
| Registration accuracy | ±0.5 mm | ±1.0 mm | ±2.0 mm |
| Special finishes | Embossing, foil stamping, spot UV | Lamination, UV coating | Limited |
| Best for | Premium, detailed graphics | High-quality displays | Simple, budget printing |
Durability and Lifespan
| Property | Paperboard | Corrugated |
|---|---|---|
| Typical display lifespan | 2–6 weeks | 4–12 weeks |
| Resistance to handling | Low — dents and creases easily | Medium — withstands restocking |
| Resistance to humidity | Low — warps in damp environments | Medium — better with water-resistant coating |
| Reusability | Single-use typically | Can be reused 2–3 times |
| Shipping durability | Low — requires protective packaging | Medium — self-supporting during shipping |
When to Use Paperboard Displays
Paperboard is the right choice when the display is small, lightweight, and does not need to support heavy product loads. It is also the preferred material when print quality is the top priority.
| Display Scenario | Why Paperboard Works | Example |
|---|---|---|
| Countertop display, small footprint | Lightweight, no structural load needed | Cosmetic display at checkout |
| PDQ tray for lightweight products | Small size, simple structure | K-cup pod display |
| Short-term promotion (2–4 weeks) | Does not need to survive long-term handling | Seasonal sample display |
| Premium print required | Paperboard surface is smooth, ideal for high-quality printing | Luxury brand counter display |
| Low MOQ, budget-friendly | Lower tooling cost, simpler production | Small brand test launch |
| Eco-friendly / recyclable | Paperboard is easily recyclable, uses less material | Sustainable brand display |
Paperboard Display Limitations
| Limitation | Why It Matters | What to Do Instead |
|---|---|---|
| Cannot hold heavy products | Bags, bottles, cans will cause sagging | Use corrugated with appropriate flute |
| Warps in high humidity | Paperboard absorbs moisture, loses shape | Use coated corrugated or plastic |
| Limited size (max 24" × 36") | Large paperboard panels are too flexible | Use corrugated for larger displays |
| Dents and creases easily | Retail staff handling damages the display | Use corrugated for high-traffic areas |
| Short lifespan (2–6 weeks) | Not suitable for long-term retail programs | Use corrugated for 8+ week programs |
When to Use Corrugated Displays
Corrugated board is the right choice when the display needs to hold weight, survive handling, and remain stable for weeks or months on the retail floor.
| Display Scenario | Why Corrugated Works | Example |
|---|---|---|
| Floor display with multiple shelves | Must hold 20–50 lbs of product without sagging | Snack food floor display |
| Heavy product display | Bags, bottles, cans need structural support | Coffee bag display, wine display |
| Long-term promotion (8+ weeks) | Corrugated withstands restocking and handling | Club store pallet display |
| Large display (48"+) | Corrugated maintains structural integrity at height | Tall standee, tower display |
| Pallet display / pre-filled display | Must support stacking and pallet jack handling | Costco pallet display |
| Dump bin for bulk products | Must resist sidewall bulging under product weight | Bulk candy dump bin |
Corrugated Display Limitations
| Limitation | Why It Matters | What to Do Instead |
|---|---|---|
| Lower print quality (direct print) | Fluted surface causes uneven ink coverage | Use litho-laminated corrugated for premium print |
| Thicker, bulkier material | Takes up more space in shipping | Use E flute for thinner option |
| Higher cost per unit | More material, more complex production | Use paperboard for simple, small displays |
| Heavier weight | Higher shipping costs | Use paperboard for lightweight applications |
| Less precise folding | Corrugated does not fold as cleanly as paperboard | Use paperboard for precision folding needs |
Printing and Finishing Comparison
Printing Methods Available
| Printing Method | Paperboard | Corrugated | Print Quality | Cost Index |
|---|---|---|---|---|
| Offset lithography | ✅ Yes | ❌ No (board too thick) | Excellent | 1.0× (baseline) |
| Flexography | ✅ Yes | ✅ Yes | Fair to good | 0.5× |
| Litho lamination | ❌ Not needed | ✅ Yes (print on paper, laminate to corrugated) | Very good | 1.2× |
| Digital printing | ✅ Yes | ✅ Yes | Good to very good | 0.8× |
| Screen printing | ✅ Yes | ✅ Yes | Good (spot colors) | 1.5× |
| Foil stamping | ✅ Yes | ❌ Limited | Excellent | 2.0× |
Finishing Options
| Finish | Paperboard | Corrugated | Purpose |
|---|---|---|---|
| Gloss lamination | ✅ Yes | ✅ Yes | Shiny finish, durable, vibrant colors |
| Matte lamination | ✅ Yes | ✅ Yes | Non-reflective, premium feel |
| Soft touch lamination | ✅ Yes | ✅ Yes | Velvety texture, luxury positioning |
| Aqueous coating | ✅ Yes | ✅ Yes | Low-cost protection, matte or gloss |
| UV coating | ✅ Yes | ✅ Yes (spot or full) | High-gloss, scratch-resistant |
| Embossing / debossing | ✅ Yes | ❌ Limited | Raised or recessed texture |
| Spot UV | ✅ Yes | ❌ Limited | Selective gloss highlights |
For more on printing and finishing, see our custom display printing and finishing methods guide.
Cost Comparison
Material Cost per Square Foot
| Material | Cost per Sq Ft (est.) | Index |
|---|---|---|
| Paperboard (SBS, 18pt) | $0.15–$0.30 | 1.0× (baseline) |
| Paperboard (CCNB, 18pt) | $0.10–$0.20 | 0.7× |
| E flute corrugated | $0.12–$0.25 | 0.9× |
| B flute corrugated | $0.10–$0.20 | 0.8× |
| C flute corrugated | $0.08–$0.18 | 0.7× |
| BC flute corrugated | $0.15–$0.30 | 1.1× |
| Litho-laminated corrugated | $0.20–$0.40 | 1.5× |
Total Display Cost Comparison
| Display Type | Paperboard Cost | Corrugated Cost | Which Is Cheaper? |
|---|---|---|---|
| Small counter display (6" × 6" × 8") | $0.50–$1.50 | $0.80–$2.00 | Paperboard |
| PDQ tray (4" × 4" × 6") | $0.30–$0.80 | $0.50–$1.20 | Paperboard |
| Medium floor display (18" × 24" × 60") | Not feasible (too weak) | $3.00–$8.00 | Corrugated (only option) |
| Dump bin (16" × 12" × 18") | $1.00–$2.50 | $1.50–$3.50 | Paperboard (small only) |
| Pallet display (40" × 48" × 60") | Not feasible | $5.00–$15.00 | Corrugated (only option) |
| Standee (24" × 60") | $2.00–$5.00 | $3.00–$6.00 | Paperboard |
When Paperboard Saves Money
| Factor | Savings | Why |
|---|---|---|
| Tooling cost | 30–50% less | Paperboard die-cutting is simpler |
| Material cost per unit | 20–40% less for small displays | Less material used |
| Shipping weight | 40–60% lighter | Paperboard is thinner, lighter |
| MOQ | 30–50% lower | Less setup, simpler production |
When Corrugated Saves Money
| Factor | Savings | Why |
|---|---|---|
| Cost per unit of strength | 50–70% more value | Corrugated carries more weight per dollar |
| Display lifespan | 2–3× longer | Corrugated survives more handling |
| Shipping protection | Less damage during transit | Corrugated is self-supporting |
| Reusability | 2–3 uses vs single use | Corrugated can be reused |
Common Misconceptions
| Misconception | Truth | Why It Matters |
|---|---|---|
| "Cardboard and corrugated are the same thing" | They are different materials with different structures | Using the wrong term leads to ordering the wrong material |
| "Paperboard is weaker than corrugated in all cases" | Paperboard is stronger than corrugated in thinness and fold precision | Paperboard is better for small, precise folding displays |
| "Corrugated cannot print well" | Litho-laminated corrugated achieves near-photo quality | Corrugated can produce premium print with the right process |
| "Paperboard displays are always cheaper" | Paperboard is cheaper per unit but fails if the display needs structural strength | Total cost of failure (damaged product, lost sales) may exceed the savings |
| "Corrugated is too thick for small displays" | E flute and F flute corrugated are nearly as thin as paperboard | Micro-flute corrugated is a viable alternative for small displays |
| "Paperboard is more eco-friendly" | Both materials are recyclable; corrugated uses more material but lasts longer | Environmental impact depends on the full lifecycle, not just material weight |
Decision Matrix: Which Material to Choose
| Your Product / Scenario | Recommended Material | Why |
|---|---|---|
| Lightweight product (< 1 lb per unit), small display | Paperboard | Lower cost, sufficient strength, better print |
| Heavy product (> 1 lb per unit), floor display | Corrugated | Structural strength required |
| Premium brand, high-quality print needed | Paperboard or litho-laminated corrugated | Paperboard for small; litho-lam corrugated for large |
| Budget is the primary concern | Paperboard (if applicable) or direct-print corrugated | Lowest cost option that meets requirements |
| Long-term display (8+ weeks) | Corrugated | Withstands handling and restocking |
| Short-term promotion (2–4 weeks) | Paperboard | Lower cost, sufficient for short duration |
| Large display (48"+ tall) | Corrugated | Paperboard cannot maintain structural integrity |
| Small counter display (under 12" tall) | Paperboard | Cost-effective, sufficient strength |
| Eco-friendly / sustainable brand | Paperboard or corrugated (recycled content) | Both are recyclable; choose recycled grades |
| Club store / high-traffic retail | Corrugated | Must survive heavy handling and restocking |
| Cosmetic / beauty product | Paperboard or E-flute corrugated | Premium print surface required |
| Food / beverage product | Corrugated (with food-safe coating) | Structural strength + moisture resistance |
Quick Decision Flowchart
- Is the display under 24" tall and holding lightweight products? → Paperboard
- Is premium print quality the top priority? → Paperboard or litho-laminated corrugated
- Is the display on the floor or holding heavy products? → Corrugated
- Is the display for a club store or high-traffic environment? → Corrugated
- Is the promotion short-term (under 4 weeks)? → Paperboard (if applicable)
- Is the display over 48" tall? → Corrugated
- Not sure? → Start with corrugated — it is safer to use corrugated where paperboard would fail than to use paperboard where corrugated is needed.
FAQ
What is the difference between cardboard and corrugated?
Cardboard (paperboard) is a single thick sheet of paper material. Corrugated board has a fluted inner layer between two flat linerboards. Corrugated is significantly stronger, thicker, and more durable. Paperboard is thinner, smoother, and better for high-quality printing. The two materials are not interchangeable for most display applications.
Can corrugated displays achieve the same print quality as paperboard?
Yes — but only through litho lamination, where the design is printed on high-quality paper and then laminated to the corrugated board. Direct flexo printing on corrugated cannot match paperboard print quality. Litho-laminated corrugated adds approximately 20–30% to the display cost compared to direct-print corrugated.
Which material is cheaper for a display?
For small displays (under 24" tall, lightweight products), paperboard is cheaper. For larger displays or displays that need to hold weight, corrugated is the only viable option. The cost comparison should include the cost of failure — a paperboard display that sags or collapses costs more in lost sales than the material savings.
What is the best material for a counter display?
For most counter displays, paperboard is the best choice. It provides sufficient strength for lightweight products, delivers excellent print quality, and costs less than corrugated. For counter displays holding heavier products (such as bottled beverages), use E-flute or B-flute corrugated instead.
What is the best material for a floor display?
Corrugated board is the only suitable material for floor displays. The structural load of 20–50 lbs of product, combined with the height of the display (48–72"), requires corrugated's strength. Use C-flute or BC-flute corrugated for standard floor displays, and E-flute for premium litho-laminated floor displays.
Can I use paperboard for a dump bin?
Paperboard works for small dump bins (under 12" × 12" × 18") holding lightweight products. For larger dump bins or bins holding heavy products, use B-flute or C-flute corrugated. The sidewall pressure of products in a deep bin will cause paperboard to bulge and eventually tear.
Is corrugated board recyclable?
Yes — corrugated board is one of the most recycled materials in the world, with a recycling rate of approximately 90% in the United States. Paperboard is also recyclable. Both materials are made from renewable resources and are biodegradable. The Fibre Box Association publishes annual recycling statistics for corrugated packaging.
What is the minimum order quantity for paperboard vs corrugated displays?
Paperboard displays typically have lower MOQ (200–500 units) because the tooling is simpler and less expensive. Corrugated displays have higher MOQ (500–2,000 units) due to more complex die-cutting and material handling. For small test runs, paperboard is the more practical choice.
Can I combine paperboard and corrugated in one display?
Yes — hybrid displays are common. A typical configuration uses a corrugated base and structural frame for strength, with paperboard panels or trays for print quality. This approach optimizes both cost and performance. Discuss hybrid options with your manufacturer if you need both strength and premium print.
How do I know if my product needs paperboard or corrugated?
Use this rule of thumb: if the display is under 24" tall and the total product weight per shelf is under 5 lbs, paperboard is sufficient. If the display is taller than 24" or any shelf holds more than 5 lbs of product, use corrugated. When in doubt, choose corrugated — it is better to over-engineer than to have a display fail on the retail floor.
